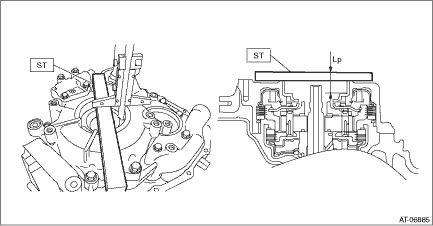

1. PROCEDURE IN REPLACEMENT OF PRIMARY AND SECONDARY PULLEY, OR IN REPLACEMENT OF PRIMARY PULLEY, SECONDARY PULLEY AND VARIATOR CHAIN 1. Measure depth “Lp” from the ST upper face to the primary pulley bearing catch surface at several points and calculate the average.

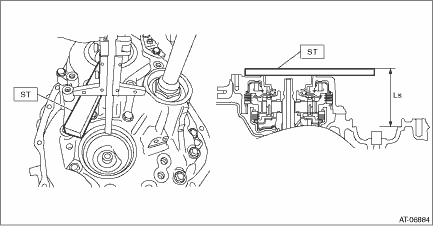

2. Measure the depth “Ls” from the ST upper face to the secondary pulley bearing catch surface at several points and calculate the average.
3. Calculate the following formula. Calculation formula: T (mm) = B − A + Lp − Ls − 28.602 [T (in) = B − A + Lp − Ls − 1.126] T: Pulley alignment A: Specified primary pulley dimension B: Specified secondary pulley dimension Lp: Depth from the ST upper face to the primary pulley bearing catch surface Ls: Depth from the ST upper face to the secondary pulley bearing catch surface 28.602 mm (1.126 in): Constant
4. Select one to two shims so that the total thickness meets the value obtained from step 3).
2. PROCEDURE WHEN REPLACING ONLY DRIVE PINION RETAINER OR REVERSE BRAKE HOUSING 1. Clean the mating surface of current drive pinion retainer and converter case. 2. Measure and record the shim thickness that is attached on the current reverse brake housing. 3. Using the current drive pinion retainer, measure depth “Lp1” from the ST upper face to the primary pulley bearing catch surface at several points and calculate the average.

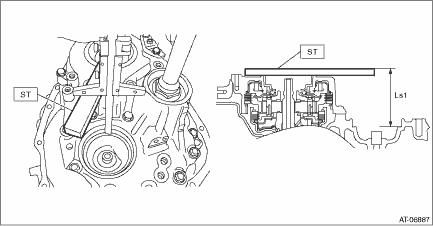

4. Using the current drive pinion retainer or current reverse brake housing, measure the depth “Ls1” from the ST upper face to the secondary pulley bearing catch surface at several points and calculate the average.

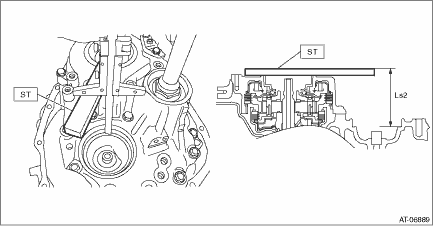

5. Calculate the “LD1” using the following formula and record it. Calculation formula: LD1 mm (in) = Ls1 − Lp1 LD1: Height from the primary pulley bearing catch surface to the secondary pulley bearing catch surface Lp1: Depth from the ST upper face to the primary pulley bearing catch surface Ls1: Depth from the ST upper face to the secondary pulley bearing catch surface 6. Using the new drive pinion retainer or new reverse brake housing, measure the depth “Lp2” from the ST upper face to the primary pulley bearing catch surface at several points and calculate the average.
7. Using the new drive pinion retainer or new reverse brake housing, measure the depth “Ls2” from the ST upper face to the secondary pulley bearing catch surface at several points and calculate the average.
8. Calculate the “LD2” using the following formula and record it. Calculation formula: LD2 mm (in) = Ls2 − Lp2 LD2: Height from the primary pulley bearing catch surface to the secondary pulley bearing catch surface Lp2: Depth from the ST upper face to the primary pulley bearing catch surface Ls2: Depth from the ST upper face to the secondary pulley bearing catch surface 9. Calculate the recorded values of “LD1” and “LD2” to obtain the positive number to select the shims. Calculation formula: T1 mm (in) = LD1 − LD2 or T2 mm (in) = LD2 − LD1 T1, T2: Difference between new drive pinion retainer or new reverse brake housing and current drive pinion retainer or current reverse brake housing LD1: Calculated value of current drive pinion retainer or current reverse brake housing LD2: Calculated value of new drive pinion retainer or new reverse brake housing
|
Adjustment
