1. PROCEDURE IN REPLACEMENT OF PRIMARY AND SECONDARY PULLEY, OR IN REPLACEMENT OF PRIMARY PULLEY, SECONDARY PULLEY AND VARIATOR CHAIN 1. Measure depth “Lp” from the ST upper face to the primary pulley bearing catch surface at several points and calculate the average.
2. Measure height “Ls” from the drive pinion retainer upper face to the secondary pulley bearing catch surface at several points and calculate the average.
3. Calculate the following formula. Calculation formula: T (mm) = B + (Lp − Ls) + 31.601 − A [T (in) = B + (Lp − Ls) + 1.224 − A] T: Pulley alignment A: Specified primary pulley dimension B: Specified secondary pulley dimension Lp: Depth from the ST upper face to the primary pulley bearing catch surface Ls: Depth from the ST upper face to the secondary pulley bearing catch surface 31.601 mm (1.224 in): Constant
4. Select one to two shims so that the total thickness meets the value obtained from step 3).
2. PROCEDURE WHEN REPLACING ONLY DRIVE PINION RETAINER OR CONVERTER CASE 1. Clean the mating surface of current drive pinion retainer and converter case. 2. Measure and record the shim thickness that is attached on the current converter case. 3. Using the current drive pinion retainer, measure depth “Lp1” from the ST upper face to the primary pulley bearing catch surface at several points and calculate the average.

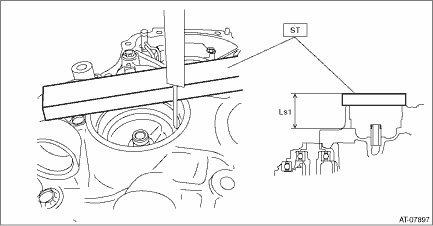

4. Using the current drive pinion retainer or current converter case, measure depth “Ls1” from the ST upper face to the secondary pulley bearing catch surface at several points and calculate the average.

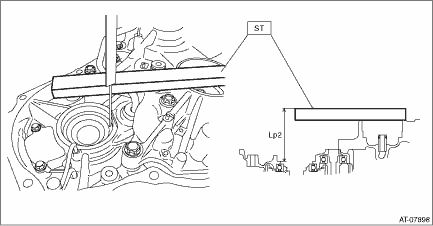

5. Calculate the “LD1” using the following formula and record it. Calculation formula: LD1 mm (in) = Lp1 − Ls1 LD1: Height from the primary pulley bearing catch surface to the secondary pulley bearing catch surface Lp1: Depth from the ST upper face to the primary pulley bearing catch surface Ls1: Depth from the ST upper face to the secondary pulley bearing catch surface 6. Using the new drive pinion retainer or new converter case, measure depth “Lp2” from the ST upper face to the primary pulley bearing catch surface at several points and calculate the average.
7. Using the new drive pinion retainer or new converter case, measure depth “Ls2” from the ST upper face to the secondary pulley bearing catch surface at several points and calculate the average.
8. Calculate the “LD2” using the following formula and record it. Calculation formula: LD2 mm (in) = Lp2 − Ls2 LD2: Height from the primary pulley bearing catch surface to the secondary pulley bearing catch surface Lp2: Depth from the ST upper face to the primary pulley bearing catch surface Ls2: Depth from the ST upper face to the secondary pulley bearing catch surface 9. Calculate the recorded values of “LD1” and “LD2” to obtain the positive number to select the shims. Calculation formula: T1 mm (in) = LD1 − LD2 or T2 mm (in) = LD2 − LD1 T1, T2: Difference between new drive pinion retainer or new converter case and current drive pinion retainer or current converter case LD1: Calculated value of current drive pinion retainer or current converter case LD2: Calculated value of new drive pinion retainer or new converter case
|
