Subaru Legacy BN/BS (2015-2019) Service Manual: Adjustment

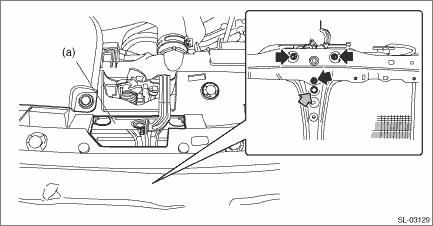

1. Remove the bumper face - front. Front Bumper > REMOVAL NOTE: Remove the bumper face - front only at the first adjustment. 2. Remove the center ring clip from the lock assembly - front hood. NOTE: Remove the center ring clip only at the first adjustment. After adjusting the lock assembly - front hood, dispose the clips since they are no longer needed. The clips cannot be inserted because the clip holes become smaller due to adjustment. 3. Loosen the nuts through the adjustment window (a) of the lock assembly - front hood, and adjust the lock assembly - front hood while moving it up and down. CAUTION: After adjustment, tighten the bolts securely. Tightening torque: 33 N·m (3.4 kgf-m, 24.3 ft-lb)
|
Removal
1. Open the front hood.2. Remove the air intake duct. Air Intake Duct > REMOVAL3. Remove the bumper face - front. Front Bumper > REMOVAL4. Remove the bracket - grille.5. Remove the radiator upper br ...
Installation
CAUTION:• Install the bumper face - front so that the front end of the under cover (b) comes inside the bumper face - front (a).• Before installing the bumper face, match the claws on the ...
