1. NOZZLE - WINDSHIELD WASHER

1. Turn the wiper switch to OFF position.

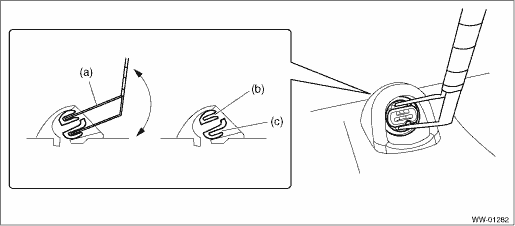

2. While the vehicle is at a standstill, insert the washer nozzle adjustment tool (a) into upper side (b) and lower side (c) of the nozzle - windshield washer to perform necessary adjustment.

CAUTION:

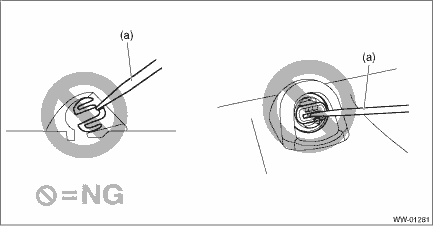

Washer nozzle is made of resin. If precision screwdriver (a) or equivalent is inserted into discharge port for adjustment, the discharge port can be deformed, and washer fluid cannot be sprayed.

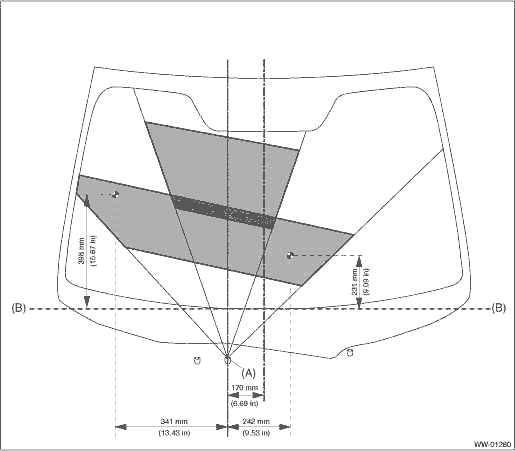

3. Adjust the washer injection position as shown in the figure.

(A)

Nozzle - windshield washer

(B)

Ceramic line

2. NOZZLE - WINDSHIELD WASHER EyeSight (MODEL WITH EyeSight ONLY)

1. Turn the wiper switch to OFF position.

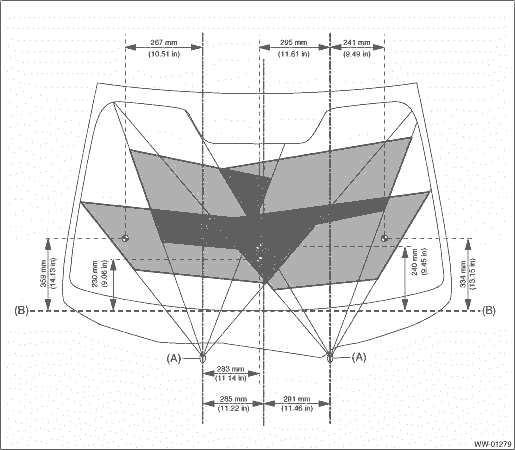

2. Adjust the washer injection position as shown in the figure.

(A)

Nozzle - windshield washer EyeSight

(B)

Ceramic line
