Subaru Legacy BN/BS (2015-2019) Service Manual: Assembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr580) / Oil pump chain / Assembly

1. DRIVE SPROCKET

1. Using the ST, install the ball bearing.

NOTE:

Use a new ball bearing.

ST 499755502

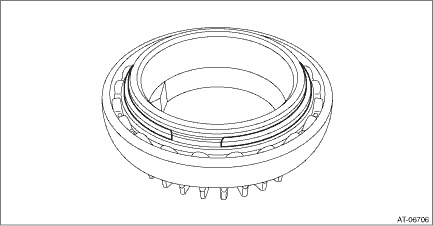

PRESS SNAP RING

2. Install the snap ring.

Removal

1. Remove the transmission assembly. Automatic Transmission Assembly > REMOVAL2. Remove the torque converter assembly. Torque Converter Assembly > REMOVAL3. Remove the oil pump chain cover.NOTE:Oil ...

Installation

1. Clean the mating surface of oil pump chain cover and converter case.2. Using the ST, install the oil seal.NOTE:• Use a new oil seal.• Apply CVTF to the oil seal lip and press-fitting su ...
