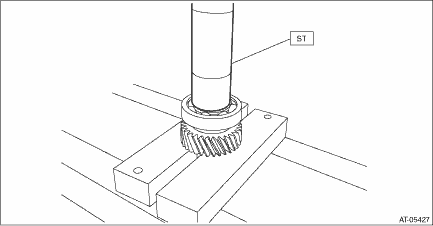

1. Using the ST, install the ball bearing to front reduction drive gear.

NOTE:

Use a new ball bearing.

ST 18651AA000

INSTALLER

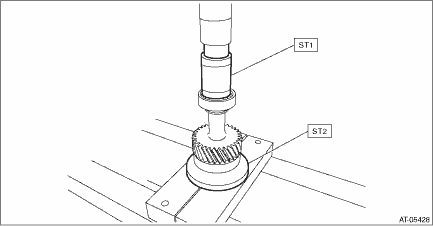

2. Using ST1 and ST2, install the ball bearing to front reduction drive gear.

NOTE:

Use a new ball bearing.

ST1 499757002

INSTALLER

ST2 398177700

INSTALLER

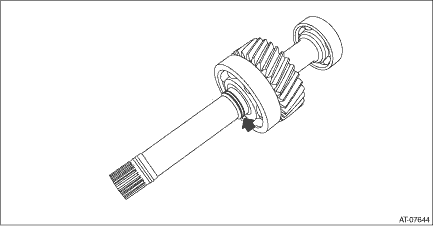

3. Install the seal rings.

NOTE:

• Use new seal rings.

• When installing the seal rings, do not expand the seal rings too much.

• Install the O-ring when installing the torque converter assembly.

Disassembly

1. Remove the seal ring and O-ring.2. Using the ST, remove the ball bearing from front reduction drive gear.ST 899864100REMOVER3. Using the ST, remove the ball bearing from front reduction drive ge ...
