Subaru Legacy BN/BS (2015-2019) Service Manual: Assembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Fuel injection (fuel systems)(h4do) / Intake manifold assembly / Assembly

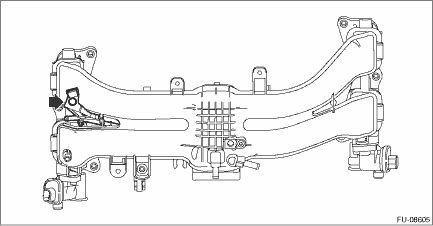

1. Install the fuel pipe assembly to the intake manifold assembly.

Tightening torque:

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

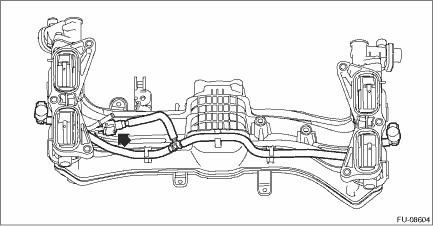

2. Install the fuel delivery pipe to the intake manifold assembly.

CAUTION:

• Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.

• When connecting the quick connector, make sure to insert it all the way in before locking the slider.

• When it is difficult to lock the slider, check that the connector is fully inserted.

• After locking the slider, check again that the quick connector is securely connected.

NOTE:

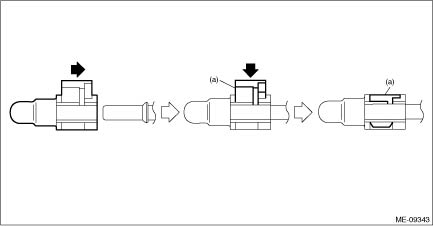

Connect the quick connector as shown in the figure.

(a)

Slider

3. Install the manifold absolute pressure sensor. Manifold Absolute Pressure Sensor > INSTALLATION

4. Install the purge control solenoid valve. Purge Control Solenoid Valve > INSTALLATION

5. Install the EGR control valve. EGR Control Valve > INSTALLATION

6. Install the EGR pipe. EGR Pipe > INSTALLATION

7. Install the throttle body. Throttle Body > INSTALLATION

Removal

1. Release the fuel pressure. Fuel > PROCEDURE2. Disconnect the ground terminal from battery sensor. NOTE3. Open the fuel filler lid and remove the fuel filler cap.NOTE:This operation is required to ...

Installation

1. Install the intake manifold assembly onto cylinder head.NOTE:• Use a new gasket.• Be careful not to let the engine harness be caught by the parts.Tightening torque:25 N·m (2.5 kg ...
