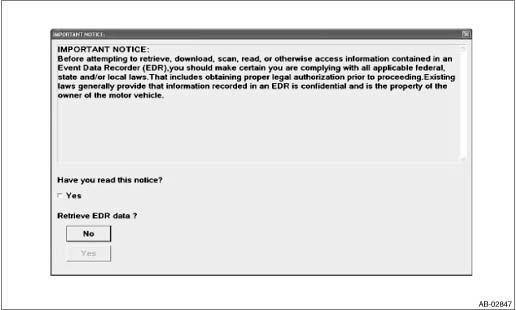

1. On «Start» display, select «Diagnosis». 2. On «Vehicle selection» display, input the target vehicle information and select «Confirmed». 3. On «Main Menu» display, select «Each System». 4. On «Select System» display, select «Airbag» and select «Enter». 5. On «Airbag» display, select «Work Support». 6. On «Work Support item» display, select «Batch save of Event record data». After selection, «IMPORTANT NOTICE» screen is displayed. 7. After checking the content of «IMPORTANT NOTICE», click the checkbox for “Yes”. 8. If the applicable law is not violated, click the «Yes» button to display the EDR data. 9. Specify the destination for the event record data to save the data there. 10. After saving the file, click the «OK» button to return the menu screen. |
Dtc b1835 short in curtain airbag lh squib circuit
DIAGNOSIS START CONDITION:Ignition voltage is 10 V to 16 V.DTC DETECTING CONDITION:Shorted between +/− lines (shorted between main harness lines, shorted between curtain airbag LH lines, shorted between airbag CM internal lines)CAUTION:Before performing diagnosis, refer to “CAUTION&rdquo ...
