Subaru Legacy BN/BS (2015-2019) Service Manual: Component

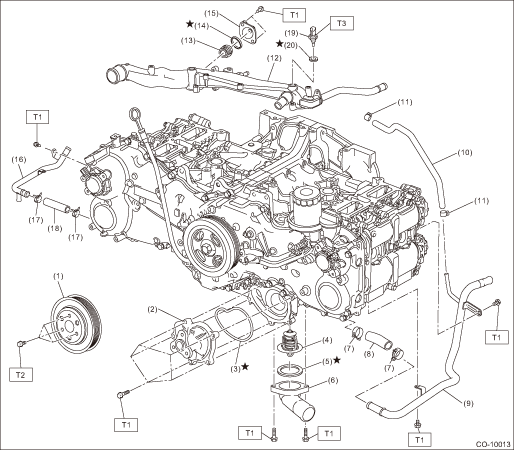

1. WATER PUMP

(1)

Water pump pulley

(10)

Preheater hose

(19)

Engine coolant temperature sensor

(2)

Water pump ASSY

(11)

Clip

(20)

Gasket

(3)

Gasket

(12)

Water pipe ASSY

(4)

Thermostat (engine side)

(13)

Thermostat (CVTF cooler (with warmer feature) side)

Tightening torque: N·m (kgf-m, ft-lb)

(5)

Gasket (engine side)

(14)

Gasket (CVTF cooler (with warmer feature) side)

T1:

6.4 (0.7, 4.7)

(6)

Thermostat cover (engine side)

(15)

Thermostat cover (CVTF cooler (with warmer feature) side)

T2:

14 (1.4, 10.3)

(7)

Clip

(16)

Water pipe RH

T3:

18 (1.8, 13.3)

(8)

Water pipe hose LH

(17)

Clip

(9)

Water pipe LH

(18)

Water pipe hose RH

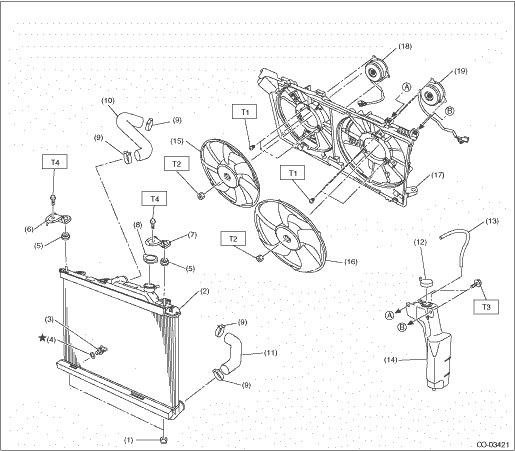

2. RADIATOR & RADIATOR FAN

(1)

Radiator lower cushion

(10)

Radiator inlet hose

(19)

Radiator main fan motor

(2)

Radiator

(11)

Radiator outlet hose

(3)

Radiator drain plug

(12)

Engine coolant reservoir tank cap

Tightening torque: N·m (kgf-m, ft-lb)

(4)

O-ring

(13)

Over flow hose

T1:

3.9 (0.4, 2.9)

(5)

Radiator upper cushion

(14)

Engine coolant reservoir tank

T2:

6.4 (0.7, 4.7)

(6)

Radiator upper bracket RH

(15)

Radiator sub fan

T3:

7.5 (0.8, 5.5)

(7)

Radiator upper bracket LH

(16)

Radiator main fan

T4:

12 (1.2, 8.9)

(8)

Radiator cap

(17)

Radiator fan shroud

(9)

Clip

(18)

Radiator sub fan motor

3. ACTIVE GRILLE SHUTTER

(1)

Active grille shutter

(2)

Ambient sensor

Tightening torque: N·m (kgf-m, ft-lb)

T:

7.5 (0.8, 5.5)
