Subaru Legacy BN/BS (2015-2019) Service Manual: Component

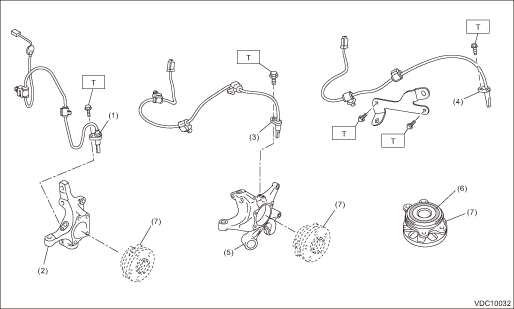

1. ABS WHEEL SPEED SENSOR

(1)

Front ABS wheel speed sensor

(5)

Housing ASSY - rear axle

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Housing ASSY - front axle

(6)

Magnetic encoder

T:

7.5 (0.8, 5.5)

(3)

Rear ABS wheel speed sensor (sedan model)

(7)

Hub unit COMPL

(4)

Rear ABS wheel speed sensor (OUTBACK model)

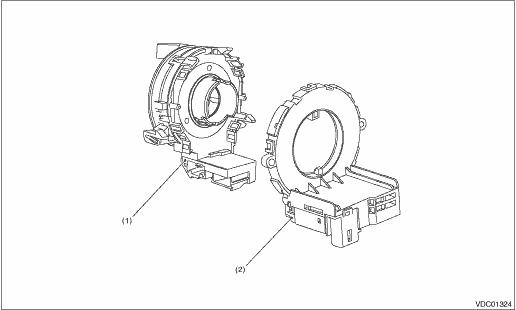

2. STEERING ANGLE SENSOR

(1)

Steering roll connector

(2)

Steering angle sensor

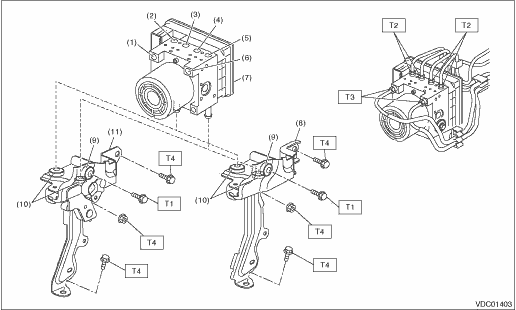

3. VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM&H/U)

(1)

Secondary inlet

(7)

VDC control module and hydraulic control unit (VDCCM&H/U)

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Rear RH outlet

(8)

Bracket - hydraulic unit (model without EyeSight)

T1:

7.5 (0.8, 5.5)

(3)

Front LH outlet

(9)

Spacer

T2:

15 (1.5, 11.1)

(4)

Front RH outlet

(10)

Damper - hydraulic unit

T3:

19 (1.9, 14.0)

(5)

Rear LH outlet

(11)

Bracket - hydraulic unit (model with EyeSight)

T4:

33 (3.4, 24.3)

(6)

Primary inlet

Preparation tool
1. SPECIAL TOOLILLUSTRATIONTOOL NUMBERDESCRIPTIONREMARKS — (Newly adopted tool)SUBARU SELECT MONITOR 4Used for setting of each function and troubleshooting for electrical system.NOTE:For detailed op ...
