Subaru Legacy BN/BS (2015-2019) Service Manual: Component

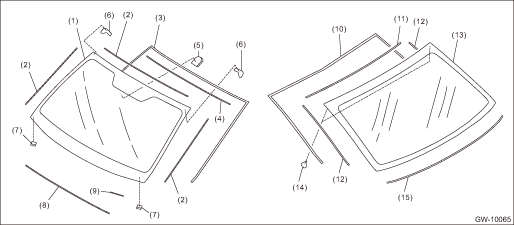

1. FIXED GLASS (SEDAN MODEL)

(1)

Glass - front window

(6)

Locating pin - front window

(11)

Dam rubber - rear UPR

(2)

Dam rubber - front UPR

(7)

Seal - LWR

(12)

Dam rubber - rear side

(3)

Molding - front window

(8)

Dam rubber - front LWR

(13)

Glass - rear window

(4)

Seal - front window UPR

(9)

Dam rubber - front VIN

(14)

Locating pin - rear window

(5)

Base - inner mirror

(10)

Molding - rear window

(15)

Dam rubber - rear LWR

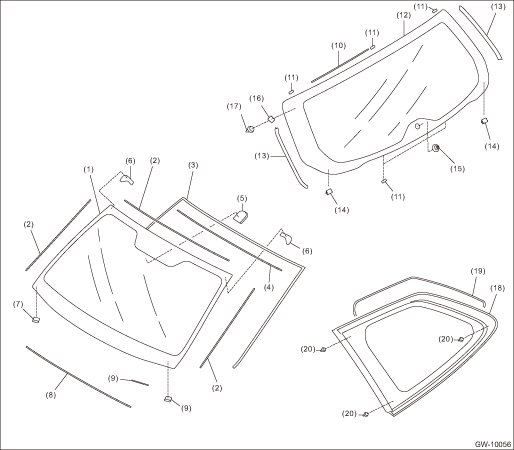

2. FIXED GLASS (OUTBACK MODEL)

(1)

Glass - front window

(8)

Dam rubber - front LWR

(15)

Cap - pivot

(2)

Dam rubber - front UPR

(9)

Dam rubber - front VIN

(16)

Holder - rear gate upper

(3)

Molding - front window

(10)

Dam rubber - rear gate

(17)

Holder - clip rear gate

(4)

Seal - front window UPR

(11)

Spacer - rear gate

(18)

Glass - rear quarter

(5)

Base - inner mirror

(12)

Glass - rear gate

(19)

Dam rubber - rear quarter

(6)

Locating pin - front window

(13)

Molding - rear gate side (model without power rear gate)

(20)

Clip

(7)

Seal - LWR

(14)

Locating pin - rear gate

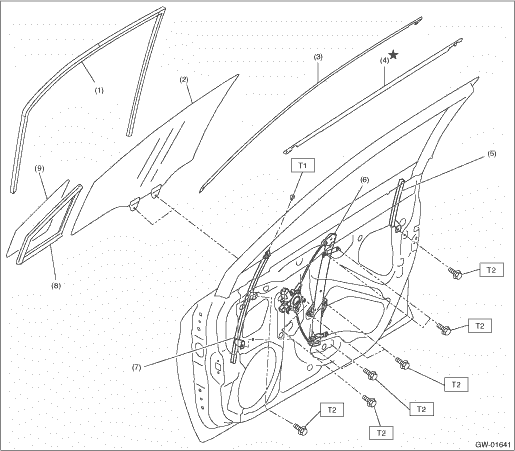

3. FRONT DOOR GLASS

(1)

Running channel - front door

(6)

Regulator & motor ASSY - front

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Glass ASSY - front door

(7)

Sash ASSY - partition

T1:

2.2 (0.2, 1.6)

(3)

Molding - door sash front

(8)

Weather strip - front door partition

T2:

7.5 (0.8, 5.5)

(4)

Weather strip outer - front door

(9)

Glass - front door partition

(5)

Sash ASSY - lower

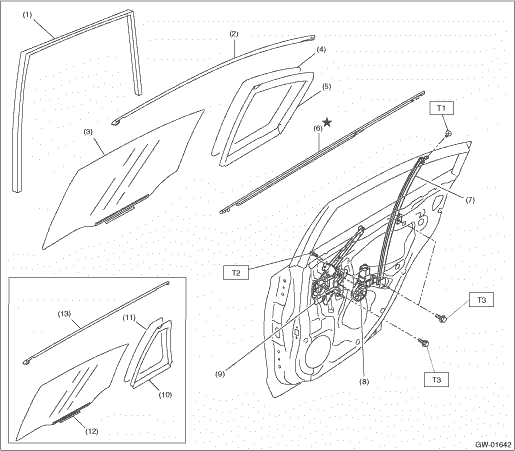

4. REAR DOOR GLASS

(1)

Running channel - rear door

(8)

Motor - rear

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Molding - door sash rear (sedan model)

(9)

Regulator - rear

T1:

2.2 (0.2, 1.6)

(3)

Glass ASSY - rear door (sedan model)

(10)

Weather strip - rear door partition (OUTBACK model)

T2:

5.9 (0.6, 4.4)

(4)

Glass - rear door partition (sedan model)

(11)

Glass - rear door partition (OUTBACK model)

T3:

7.5 (0.8, 5.5)

(5)

Weather strip - rear door partition (sedan model)

(12)

Glass ASSY - rear door (OUTBACK model)

(6)

Weather strip outer - rear door

(13)

Molding - door sash rear (OUTBACK model)

(7)

Sash ASSY - rear partition

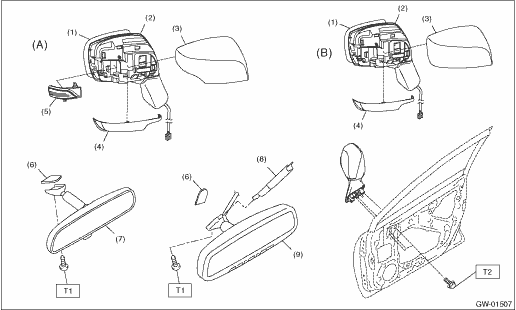

5. MIRROR

(A)

Model with side turn

(B)

Model without side turn

(1)

Mirror - repair

(6)

Base - inner mirror

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Mirror unit - door

(7)

Mirror ASSY - inner rearview (normal type)

T1:

2.0 (0.2, 1.5)

(3)

Cover - cap outer mirror

(8)

Harness cover

T2:

7.5 (0.8, 5.5)

(4)

Cover - cap outer mirror lower

(9)

Mirror ASSY - inner rearview (home link type)

(5)

Light ASSY - side turn mirror

Caution
• Before disconnecting connectors of sensors or units, be sure to disconnect the ground cable from battery. When replacing the electrical parts provided with memory functions that store contents ...
