Subaru Legacy BN/BS (2015-2019) Service Manual: Component

Subaru Legacy BN/BS (2015-2019) Service Manual / Airbag system / General description / Component

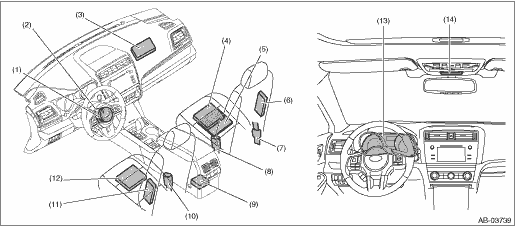

(1)	Driver’s airbag module	(6)	Side airbag module RH	(11)	Side airbag module LH
(2)	Steering roll connector	(7)	Belt tension sensor	(12)	Seat cushion airbag module LH
(3)	Passenger’s airbag module	(8)	Buckle switch RH	(13)	Airbag warning light (in combination meter)
(4)	Seat cushion airbag module RH	(9)	Airbag control module	(14)	Airbag ON/OFF indicator light (in warning box)
(5)	Occupant detection control module and sensor	(10)	Buckle switch LH

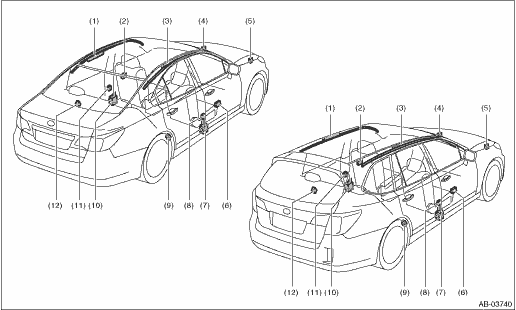

(1)	Curtain airbag module LH	(5)	Front sub sensor RH	(9)	Curtain airbag sensor RH
(2)	Front door impact sensor LH	(6)	Front door impact sensor RH	(10)	Seat belt pretensioner LH
(3)	Curtain airbag module RH	(7)	Seat belt pretensioner RH	(11)	Side airbag sensor LH
(4)	Front sub sensor LH	(8)	Side airbag sensor RH	(12)	Curtain airbag sensor LH

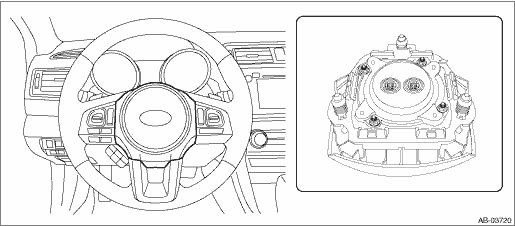

1. DRIVER’S AIRBAG MODULE

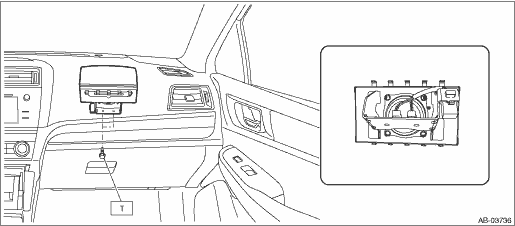

2. PASSENGER’S AIRBAG MODULE

				Tightening torque: N·m (kgf-m, ft-lb)
				T:	7.5 (0.8, 5.5)

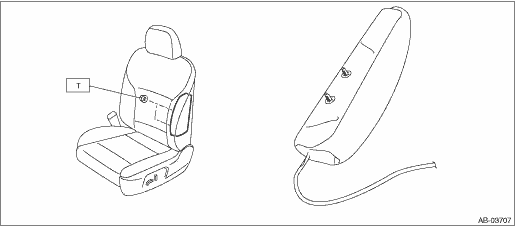

3. SIDE AIRBAG MODULE

				Tightening torque: N·m (kgf-m, ft-lb)
				T:	6 (0.6, 4.4)

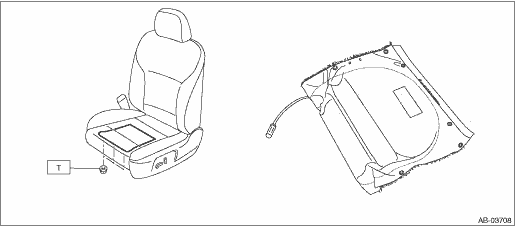

4. SEAT CUSHION AIRBAG MODULE

				Tightening torque: N·m (kgf-m, ft-lb)
				T:	6 (0.6, 4.4)

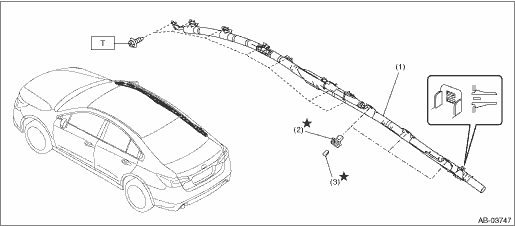

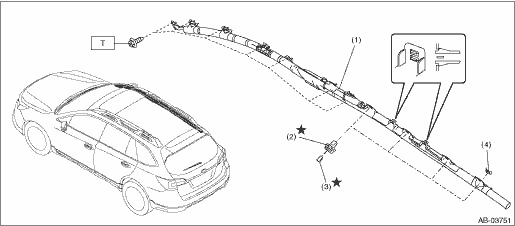

5. CURTAIN AIRBAG MODULE

(1)	Curtain airbag module	(3)	Clip - pin	Tightening torque: N·m (kgf-m, ft-lb)
(2)	Clip - bushing	(4)	Plastic spacer	T:	7.5 (0.8, 5.5)

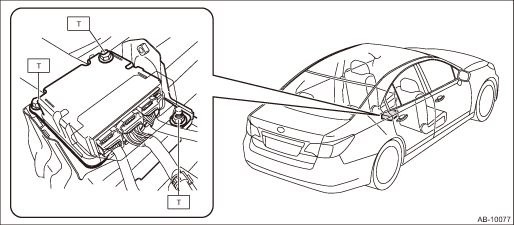

6. AIRBAG CONTROL MODULE

CAUTION:

Do not reuse mounting bolts and nuts.

				Tightening torque: N·m (kgf-m, ft-lb)
				T:	25 (2.5, 18.4)

7. FRONT SUB SENSOR

CAUTION:

Do not reuse mounting bolts and nuts.

				Tightening torque: N·m (kgf-m, ft-lb)
				T:	13 (1.3, 9.6)

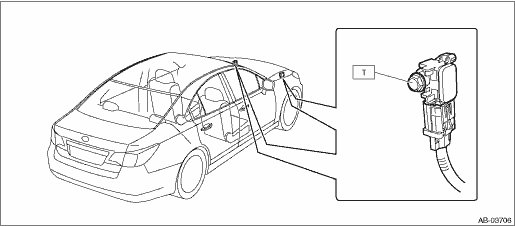

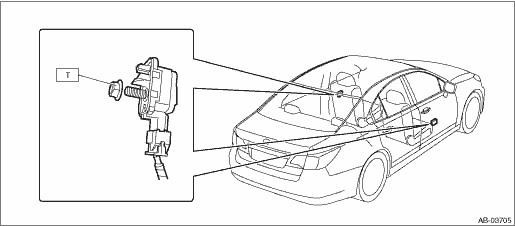

8. FRONT DOOR IMPACT SENSOR

CAUTION:

Do not reuse mounting bolts and nuts.

				Tightening torque: N·m (kgf-m, ft-lb)
				T:	7.5 (0.8, 5.5)

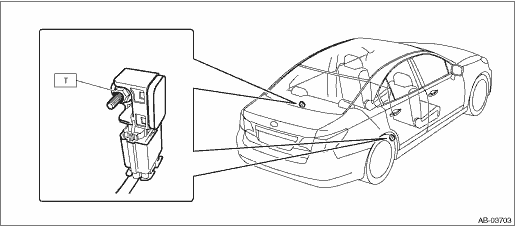

9. SIDE AIRBAG SENSOR

CAUTION:

Do not reuse mounting bolts and nuts.

				Tightening torque: N·m (kgf-m, ft-lb)
				T:	7.5 (0.8, 5.5)

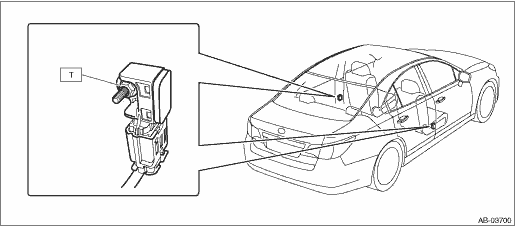

10. CURTAIN AIRBAG SENSOR

CAUTION:

Do not reuse mounting bolts and nuts.

				Tightening torque: N·m (kgf-m, ft-lb)
				T:	7.5 (0.8, 5.5)

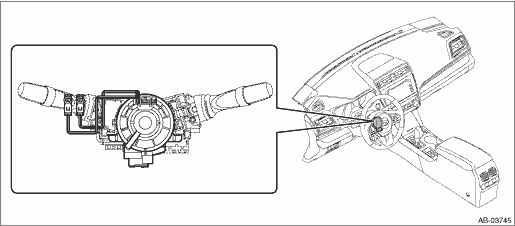

11. STEERING ROLL CONNECTOR

Caution

1. BEFORE STARTING ALL WORKS• The airbag system (including pretensioner) is fitted with a backup power supply. After disconnecting the battery ground cable, the airbag may operate if you do not ...

Passenger’s airbag module

...
