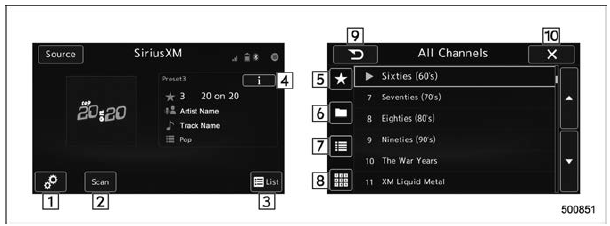

Control screen

No.	Function
1	Perform the SXM setting. See below. Refer to "SXM setting"
2	Search for a channel which the direction of higher frequency from current frequency. Reproduce the channel that can receive by 5 seconds.
3	A list is displayed. There are three types of lists ("Presets", "Categories" or "All Channels") are available. "Presets": Preset channels are displayed in a list. "Categories": The channels of the selected category are displayed in a list. "All Channels": All selectable channels are displayed in a list.
4	Display the contents information of a channel receiving
5	Presets list (30 channels max.) is displayed. Refer to "Presetting a channel" .
6	Categories list is displayed. Refer to "Selecting a channel from the list" .
7	All channels list is displayed. The available received channels are displayed, and you can select a channel.
8	Change to the Direct Tune display. Refer to "Direct Tune"
9	Return to the previous display
10	Return to the playback display.

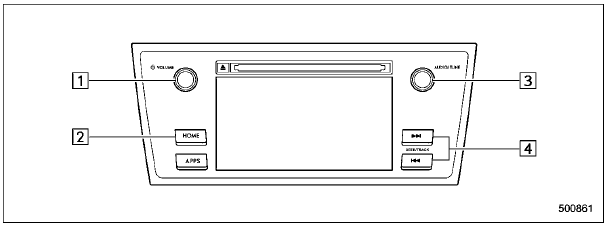

Audio panel

No.	Function
1	Turn to adjust volume. Press to turn the audio system on/ off.
2	Press to display the sound setting screen. Refer to "Unit settings" 19.
3	Turn right to step up channels and turn left to step down channels. Press to select an audio source. Refer to "Selecting an audio source" .
4	Press to step up/down channels. Press and hold to step up/down channels fast.
