1. Remove the reservoir tank.

CAUTION:

Be careful not to tighten a vise excessively.

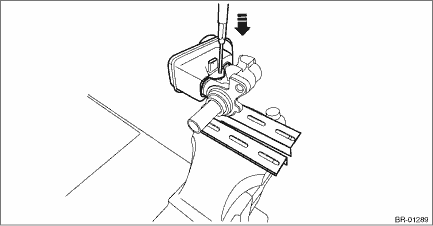

(1) Place the master cylinder assembly between aluminum plates and fix it on a vise.

(2) Drive out the pin using a punch and a hammer to remove the reservoir tank.

2. Remove the seal from the cylinder body assembly.

Installation

1. Replace the seal sub assembly for the master cylinder assembly with a new part.CAUTION:Be careful not to install the seal sub assembly in the wrong location.(a)Primary piston(b)Seal sub ASSY(c)Inst ...
