Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

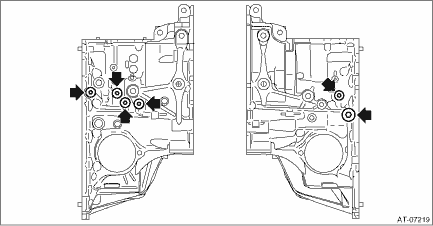

1. Remove the transmission hanger and transmission radio ground cord, if mounted. 2. Remove the filler plug, oil drain plug and overflow drain plug. Differential Gear Oil > REPLACEMENT 3. Remove all plugs.
|
Inspection
• Check for leakage of CVTF from the connection between converter case and transmission case.• Check there is no damage or cracks on the converter case. ...
