Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Reduction driven gear / Disassembly

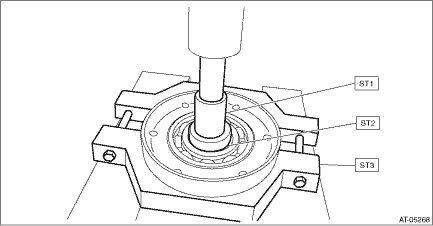

1. Remove the bearing retainer using ST1, ST2 and ST3.

ST1 899864100

REMOVER

ST2 398497701

SEAT

ST3 18767AA000

BEARING REMOVER

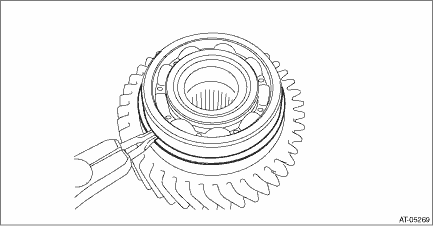

2. Remove the snap ring.

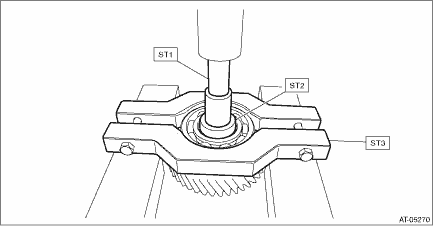

3. Remove the ball bearing using ST1, ST2 and ST3.

ST1 899864100

REMOVER

ST2 398497701

SEAT

ST3 498077600

REMOVER

Inspection

• Check the ball bearing for smooth rotation.• Check the ball bearing for excessive looseness.• Check the reduction driven gear for breakage or damage.• Check the clearance bet ...

Assembly

1. Using the ST, install the ball bearing to bearing retainer.ST 398177700INSTALLERNOTE:• Use a new ball bearing.• Make sure to install the ball bearing in the right direction.• A ...
