Subaru Legacy BN/BS (2015-2019) Service Manual: Disassembly

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Reverse brake assembly / Disassembly

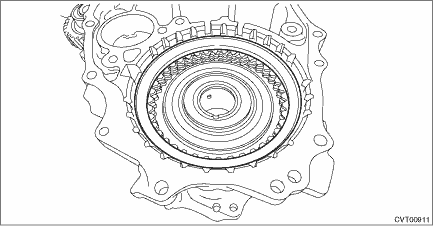

1. Remove the snap ring.

2. Remove the retaining plate, drive plate, driven plate and dish plate.

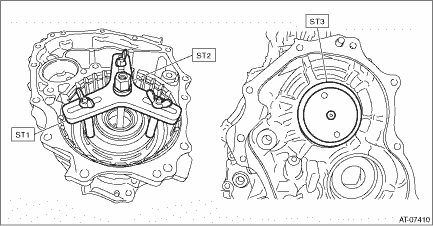

3. Set the ST1, ST2 and ST3 to intermediate case.

ST1 18762AA001COMPRESSOR SPECIAL TOOL
ST2 18763AA000COMPRESSOR SHAFT
ST3 18765AA000COMPRESSOR SUPPORT

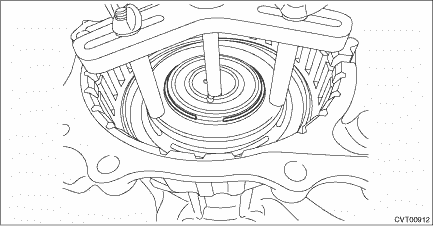

4. Compress the return spring using the set ST to remove the snap ring.

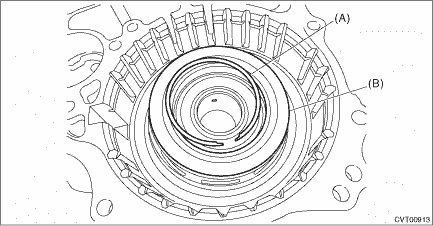

5. Using the ST, remove the snap ring and spring retainer.

(A)

Snap ring

(B)

Spring retainer

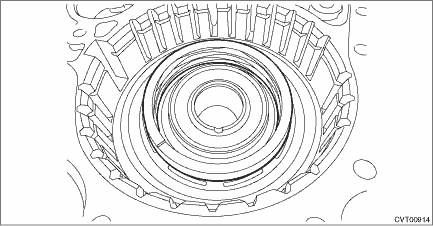

6. Remove the return spring.

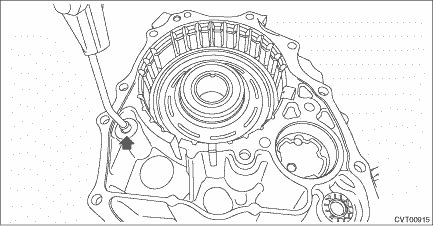

7. Remove the reverse brake piston by blowing compressed air intermittently from intermediate case hole.
