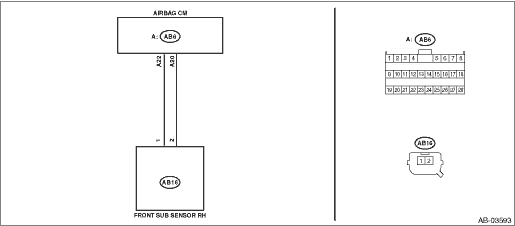

1.CHECK POOR CONTACT OF CONNECTORS. Check for poor contact of the connectors between the airbag control module and the front sub sensor RH. | | Replace the airbag main harness along with body harness. | Diagnostic Chart with Trouble Code > DTC B16A2 SHORT IN FRONT SUB SENSOR RH (TO GROUND) |
2.CHECK AIRBAG MAIN HARNESS (FRONT SENSOR BUS RH) (SHORTED TO GROUND). 1) Turn the ignition switch to OFF, disconnect the battery ground cable, and wait for 60 seconds or more. 2) Remove the instrument panel lower cover and column cover, and disconnect the connectors (AB7) and (AB2). 3) Remove the console front panel and disconnect the connector (AB9). 4) Disconnect the connectors (AB6, AB17, AB18) from airbag control module. 5) Disconnect the connector (AB16) from the front sub sensor RH, and then connect the connector (1H) in the test harness H to connector (AB16). 6) Measure the resistance between connector in the test harness H and chassis ground. Connector & terminal (3H) No. 5 — Chassis ground: (3H) No. 6 — Chassis ground: | Is the resistance 1 M- or more- | Diagnostic Chart with Trouble Code > DTC B16A2 SHORT IN FRONT SUB SENSOR RH (TO GROUND) | Replace the airbag main harness along with body harness. |
3.CHECK FRONT SUB SENSOR RH. 1) Turn the ignition switch to OFF, disconnect the battery ground cable, and wait for 60 seconds or more. 2) Replace the front sub sensor RH by the front sub sensor LH. Front Sub Sensor > REMOVAL 3) Connect all connectors. 4) Clear the memory. Clear Memory Mode 5) Perform the Inspection Mode. Inspection Mode 6) Read the DTC. (Current malfunction) Read Diagnostic Trouble Code (DTC) | | Diagnostic Chart with Trouble Code > DTC B16A2 SHORT IN FRONT SUB SENSOR RH (TO GROUND) | Replace the front sub sensor RH. Front Sub Sensor > REMOVAL |
4.CHECK AIRBAG CONTROL MODULE. 1) Turn the ignition switch to OFF, disconnect the battery ground cable, and wait for 60 seconds or more. 2) Restore the front sub sensors RH and LH back to their original position. Front Sub Sensor > REMOVAL 3) Connect all connectors. 4) Clear the memory. Clear Memory Mode 5) Perform the Inspection Mode. Inspection Mode 6) Read the DTC. (Current malfunction) Read Diagnostic Trouble Code (DTC) | | Replace the airbag control module. Airbag Control Module > REMOVAL | Diagnostic Chart with Trouble Code > DTC B16A2 SHORT IN FRONT SUB SENSOR RH (TO GROUND) |
5.CHECK FOR ANY OTHER DTC ON DISPLAY. Read the DTC. (Current malfunction) Read Diagnostic Trouble Code (DTC) | Is any other DTC displayed- | Check DTC using “List of Diagnostic Trouble Code”. List of Diagnostic Trouble Code (DTC) > LIST | |
