DIAGNOSIS START CONDITION:

Ignition voltage is 10 V to 16 V.

DTC DETECTING CONDITION:

Shorted between front sub sensor LH circuit and power supply circuit

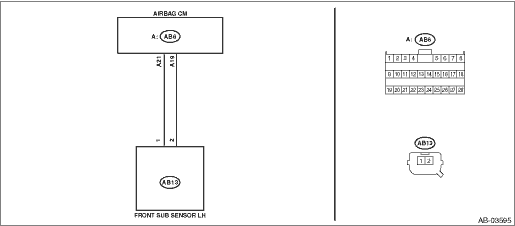

WIRING DIAGRAM:

NOTE:

For the coupling connector, refer to “WIRING SYSTEM”.

Airbag system Airbag System > WIRING DIAGRAM

STEP	CHECK	YES	NO
1.CHECK POOR CONTACT OF CONNECTORS. Check for poor contact of the connectors between the airbag control module and the front sub sensor LH.	Is there poor contact-	Replace the airbag main harness along with body harness.	Diagnostic Chart with Trouble Code > DTC B16A8 SHORT IN FRONT SUB SENSOR LH (TO +B)
2.CHECK AIRBAG MAIN HARNESS (FRONT SENSOR BUS LH) (SHORTED TO POWER SUPPLY). 1) Turn the ignition switch to OFF, disconnect the battery ground cable, and wait for 60 seconds or more. 2) Remove the instrument panel lower cover and column cover, and disconnect the connectors (AB7) and (AB2). 3) Remove the console front panel and disconnect the connector (AB9). 4) Disconnect the connectors (AB6, AB17, AB18) from airbag control module. 5) Disconnect the connector (AB13) from the front sub sensor LH, and then connect the connector (1H) in the test harness H to connector (AB13). 6) Connect the battery ground terminal and turn the ignition switch to ON. 7) Measure the voltage between connector (3H) in the test harness H and chassis ground. Connector & terminal (3H) No. 5 (+) — Chassis ground (–): (3H) No. 6 (+) — Chassis ground (–):	Is the voltage less than 1 V-	Diagnostic Chart with Trouble Code > DTC B16A8 SHORT IN FRONT SUB SENSOR LH (TO +B)	Replace the airbag main harness along with body harness.
3.CHECK AIRBAG CONTROL MODULE. 1) Connect all connectors. 2) Clear the memory. Clear Memory Mode 3) Perform the Inspection Mode. Inspection Mode 4) Read the DTC. (Current malfunction) Read Diagnostic Trouble Code (DTC)	Is DTC B16A8 displayed-	Replace the airbag control module. Airbag Control Module > REMOVAL	Diagnostic Chart with Trouble Code > DTC B16A8 SHORT IN FRONT SUB SENSOR LH (TO +B)
4.CHECK FOR ANY OTHER DTC ON DISPLAY. Read the DTC. (Current malfunction) Read Diagnostic Trouble Code (DTC)	Is any other DTC displayed-	Check DTC using “List of Diagnostic Trouble Code”. List of Diagnostic Trouble Code (DTC) > LIST	Finish the diagnosis.
