Subaru Legacy BN/BS (2015-2019) Service Manual: Dtc b1836 open in curtain airbag lh squib circuit

Subaru Legacy BN/BS (2015-2019) Service Manual / Airbag system (diagnostics) / Diagnostic chart with trouble code / Dtc b1836 open in curtain airbag lh squib circuit

DIAGNOSIS START CONDITION:

Ignition voltage is 10 V to 16 V.

DTC DETECTING CONDITION:

Open circuit failure (open circuit in main harness, open circuit in curtain airbag LH, open circuit in airbag CM internal circuit, connector connection failure)

CAUTION:

Before performing diagnosis, refer to “CAUTION” in “General Description”. General Description > CAUTION

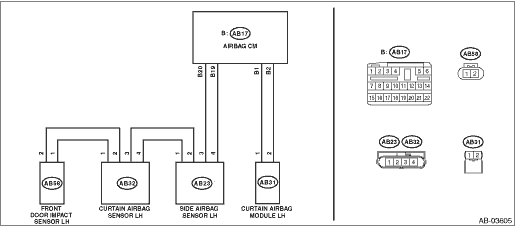

WIRING DIAGRAM:

NOTE:

For the coupling connector, refer to “WIRING SYSTEM”.

Airbag system Airbag System > WIRING DIAGRAM

STEP	CHECK	YES	NO
1.CHECK POOR CONTACT OF CONNECTORS. Check for poor contact of the connectors between the airbag control module, curtain airbag module LH and the curtain airbag sensor LH.	Is there poor contact-	Replace the airbag rear harness along with body harness.	Diagnostic Chart with Trouble Code > DTC B1836 OPEN IN CURTAIN AIRBAG LH SQUIB CIRCUIT
2.CHECK CURTAIN AIRBAG MODULE. 1) Turn the ignition switch to OFF, disconnect the battery ground cable, and wait for 60 seconds or more. 2) Disconnect the connector (AB31) from curtain airbag module LH. 3) Connect the connector (1N) in the test harness N to the connector (AB31). 4) Connect the airbag resistor to the connector (2N) of test harness N. 5) Connect the battery ground terminal and turn the ignition switch to ON.	Does the airbag warning light illuminate for 6 seconds and go off-	Replace the curtain airbag module LH. Curtain Airbag Module	Diagnostic Chart with Trouble Code > DTC B1836 OPEN IN CURTAIN AIRBAG LH SQUIB CIRCUIT
3.CHECK AIRBAG REAR HARNESS (CURTAIN AIRBAG MODULE HARNESS LH) (OPEN CIRCUIT). 1) Turn the ignition switch to OFF, disconnect the battery ground cable, and wait for 60 seconds or more. 2) Disconnect the connector (AB21) from seat belt pretensioner LH. 3) Disconnect the connector (AB5) from seat cushion airbag module LH. 4) Disconnect the connector (AB19) from side airbag module LH. 5) Disconnect the airbag resistor from test harness N. 6) Disconnect the connectors (AB6, AB17, AB18) from airbag control module. 7) Connect the connector (1AD) in test harness AD AV to the connectors (AB6, AB17, AB18). 8) Connect the connector (2AD) in test harness AD AV and the connector (1AG) in test harness AG. 9) Measure the resistance between connector (6AG) in the test harness AG and connector (2N) in the test harness N. Connector & terminal (6AG) No. 8 — (2N) No. 2: (6AG) No. 6 — (2N) No. 1:	Is the resistance less than 10 --	Diagnostic Chart with Trouble Code > DTC B1836 OPEN IN CURTAIN AIRBAG LH SQUIB CIRCUIT	Replace the airbag rear harness along with body harness.
4.CHECK AIRBAG CONTROL MODULE. 1) Connect all connectors. 2) Clear the memory. Clear Memory Mode 3) Perform the Inspection Mode. Inspection Mode 4) Read the DTC. (Current malfunction) Read Diagnostic Trouble Code (DTC)	Is DTC B1836 displayed-	Replace the airbag control module. Airbag Control Module	Diagnostic Chart with Trouble Code > DTC B1836 OPEN IN CURTAIN AIRBAG LH SQUIB CIRCUIT
5.CHECK FOR ANY OTHER DTC ON DISPLAY. Read the DTC. (Current malfunction) Read Diagnostic Trouble Code (DTC)	Is any other DTC displayed-	Check DTC using “List of Diagnostic Trouble Code (DTC)”. List of Diagnostic Trouble Code (DTC)	Finish the diagnosis.
