DIAGNOSIS START CONDITION:

When ignition switch is ON.

DTC DETECTING CONDITION:

Either the regular signal or collision signal cannot be detected from the airbag CM for at least 2 seconds.

TROUBLE SYMPTOM:

• ACN function does not operate.

• RED LED illuminates.

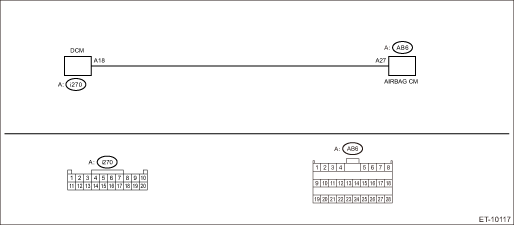

WIRING DIAGRAM:

NOTE:

For the coupling connector, refer to “WIRING SYSTEM”.

Telematics Telematics System > WIRING DIAGRAM

CAUTION:

CommCheck is required after replacing the DCM. Telematics System > OPERATION

STEP	CHECK	YES	NO
1.CHECK DTC. Read the DTC. Diagnostic Code(s) Display	Is DTC B2A0D displayed- (Current malfunction)	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC B2A0D AIRBAG SIGNAL	Even if DTC is displayed, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again. In this case, temporary poor contact of connector, temporary open or short circuit of harness may be the cause.
2.CHECK DTC. Read DTC of the airbag. Read Diagnostic Trouble Code (DTC)	Is DTC displayed- (Current malfunction)	Perform the diagnosis according to DTC.	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC B2A0D AIRBAG SIGNAL
3.CHECK HARNESS (OPEN CIRCUIT). 1) Turn the ignition switch to OFF. 2) Disconnect the airbag CM connector. 3) Disconnect the DCM connector. 4) Measure the resistance between airbag CM connector and DCM connector. CAUTION: To measure the voltage and resistance of airbag system component, be sure to use the specified test harness. General Description Connector & terminal (i270) No. 18 — (AB6) No. 27:	Is the resistance 1 - or less-	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC B2A0D AIRBAG SIGNAL	Repair or replace the open circuit of harness.
4.CHECK HARNESS (GROUND SHORT CIRCUIT). Measure the resistance between DCM connector and chassis ground. Connector & terminal (i270) No. 18 — Chassis ground:	Is the resistance 1 M- or more-	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC B2A0D AIRBAG SIGNAL	Repair or replace the open circuit of harness.
5.CHECK THE CONNECTOR (SHORT CIRCUIT TO POWER SUPPLY). Measure the voltage between DCM connector and chassis ground. Connector & terminal (i270) No. 18 (+) — Chassis ground (−):	Is the voltage less than 1 V-	Replace the DCM. Data Communication Module	Repair or replace the short circuit of the harness.
