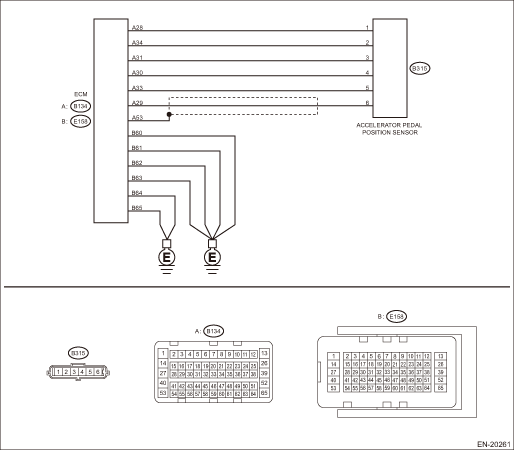

DTC DETECTING CONDITION: Immediately at fault recognition TROUBLE SYMPTOM: • Improper idling • Poor driving performance CAUTION: After servicing or replacing faulty parts, perform Clear Memory Mode Clear Memory Mode > OPERATION, and Inspection Mode Inspection Mode > PROCEDURE. WIRING DIAGRAM: • Engine Electrical System ENGINE TYPE EZ (WITHOUT PUSH BUTTON START) Engine Electrical System > WIRING DIAGRAM • Engine Electrical System ENGINE TYPE EZ (WITH PUSH BUTTON START) Engine Electrical System > WIRING DIAGRAM STEP | CHECK | YES | NO | 1.CHECK HARNESS BETWEEN ECM AND ACCELERATOR PEDAL POSITION SENSOR CONNECTOR. 1) Turn the ignition switch to OFF. 2) Disconnect the connectors from ECM and accelerator pedal position sensor. 3) Measure the resistance of harness between ECM connector and accelerator pedal position sensor connector. Connector & terminal (B315) No. 29 — (B315) No. 6: (B315) No. 23 — (B315) No. 5: | Is the resistance less than 1 -- | Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2123 THROTTLE/PEDAL POSITION SENSOR/SWITCH "D" CIRCUIT HIGH | Repair the open circuit of harness between ECM connector and accelerator pedal position sensor connector. | 2.CHECK HARNESS BETWEEN ECM AND ACCELERATOR PEDAL POSITION SENSOR CONNECTOR. 1) Connect the connector to ECM. 2) Measure the resistance between accelerator pedal position sensor connector and chassis ground. Connector & terminal (B315) No. 5 — Chassis ground: | Is the resistance less than 5 -- | Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2123 THROTTLE/PEDAL POSITION SENSOR/SWITCH "D" CIRCUIT HIGH | Repair the harness and connector. NOTE: In this case, repair the following item: • Open circuit of harness between ECM connector and engine ground • Poor contact of ECM connector • Poor contact of coupling connector | 3.CHECK HARNESS BETWEEN ECM AND ACCELERATOR PEDAL POSITION SENSOR CONNECTOR. 1) Turn the ignition switch to ON. 2) Measure the voltage between accelerator pedal position sensor connector and chassis ground. Connector & terminal (B315) No. 6 (+) — Chassis ground (−): | Is the voltage 5 V or more- | Repair the short circuit to power supply in harness between ECM connector and accelerator pedal position sensor connector. | Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2123 THROTTLE/PEDAL POSITION SENSOR/SWITCH "D" CIRCUIT HIGH | 4.CHECK HARNESS BETWEEN ECM AND ACCELERATOR PEDAL POSITION SENSOR CONNECTOR. 1) Turn the ignition switch to OFF. 2) Disconnect the connector from ECM. 3) Measure the resistance between ECM connectors. Connector & terminal (B134) No. 30 — (B134) No. 29: | Is the resistance 1 M- or more- | Repair the poor contact of accelerator pedal position sensor connector. Replace the accelerator pedal if defective. Accelerator Pedal | Repair the short circuit to power supply in harness between ECM connector and accelerator pedal position sensor connector. |

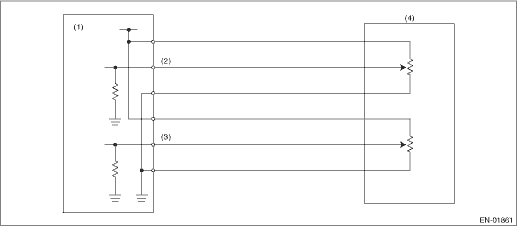

1. OUTLINE OF DIAGNOSIS Detect the open or short circuit of accelerator pedal position sensor 1. Judge as NG if out of specification. 2. COMPONENT DESCRIPTION (1) | Engine control module (ECM) | (3) | Accelerator pedal position sensor 2 signal | (4) | Accelerator pedal position sensor | (2) | Accelerator pedal position sensor 1 signal | | | | |
3. EXECUTION CONDITION Secondary Parameters | Execution condition | Battery voltage | ≥ 6 V |
4. GENERAL DRIVING CYCLE Always perform the diagnosis continuously. 5. DIAGNOSTIC METHOD If the duration of time while the following conditions are met is longer than the time indicated, judge as NG. Judgment ValueMalfunction Criteria | Threshold Value | Sensor 1 output voltage | ≥ 4.757 V | Time Needed for Diagnosis: 32 ms Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs. |
