DTC DETECTING CONDITION:

Immediately at fault recognition

TROUBLE SYMPTOM:

• Shifting shock is felt.

• Acceleration is poor during standing start.

• Shift control malfunction

1. ENGINE TYPE FB

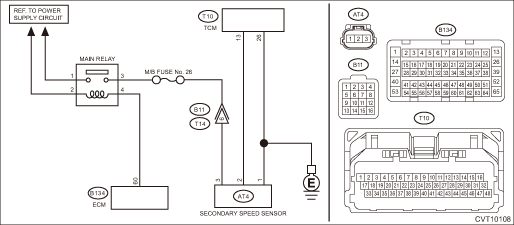

WIRING DIAGRAM:

CVT control system CVT Control System > WIRING DIAGRAM

STEP	CHECK	YES	NO
1.CHECK FUSE. 1) Turn the ignition switch to OFF. 2) Check the M/B fuse No. 26.	Is the fuse OK-	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2751 INTERMEDIATE SHAFT SPEED SENSOR "C" CIRCUIT NO SIGNAL	Replace the fuse. If the fuse blows out easily, repair the short circuit of harness.
2.CHECK ECM CONNECTOR. Check the connecting condition of ECM connector.	Is the ECM connector correctly connected-	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2751 INTERMEDIATE SHAFT SPEED SENSOR "C" CIRCUIT NO SIGNAL	Connect the ECM connector correctly.
3.CHECK HARNESS BETWEEN TRANSMISSION CONNECTOR AND MAIN RELAY CONNECTOR. 1) Turn the ignition switch to OFF. 2) Measure the voltage between transmission connector and engine ground. Connector & terminal (B11) No. 6 (+) — Engine ground (−):	Is the voltage 10 V or more-	Repair the harness and connector. NOTE: In this case, repair the following item: • Short circuit to power supply of harness between transmission connector and main relay connector • Defective main relay	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2751 INTERMEDIATE SHAFT SPEED SENSOR "C" CIRCUIT NO SIGNAL
4.CHECK HARNESS BETWEEN ECM AND MAIN RELAY CONNECTOR. 1) Turn the ignition switch to OFF. 2) Remove the main relay. 3) Disconnect the connector from ECM. 4) Measure the resistance between the ECM connector and engine ground. Connector & terminal (B134) No. 60 — Engine ground:	Is the resistance 1 M- or more-	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2751 INTERMEDIATE SHAFT SPEED SENSOR "C" CIRCUIT NO SIGNAL	Repair the short circuit to ground in harness between ECM connector and main relay connector.
5.CHECK HARNESS. 1) Turn the ignition switch to OFF. 2) Disconnect the connector of TCM and the secondary speed sensor. 3) Measure the resistance between TCM connector and the secondary speed sensor connector. Connector & terminal (T10) No. 13 — (AT4) No. 2: (T10) No. 26 — (AT4) No. 1:	Is the resistance less than 1 --	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2751 INTERMEDIATE SHAFT SPEED SENSOR "C" CIRCUIT NO SIGNAL	Repair the open circuit of harness.
6.CHECK HARNESS. Measure the resistance between TCM connector and chassis ground. Connector & terminal (T10) No. 13 — Chassis ground:	Is the resistance 1 M- or more-	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2751 INTERMEDIATE SHAFT SPEED SENSOR "C" CIRCUIT NO SIGNAL	Repair the short circuit of harness.
7.CHECK TRANSMISSION HARNESS. 1) Install the fuse. 2) Connect the TCM connector. 3) Disconnect the transmission connector. 4) Turn the ignition switch to ON. 5) Measure the voltage between transmission connector terminals. Connector & terminal (B11) No. 6 (+) — Chassis ground (−):	Is the voltage 10 — 13 V-	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2751 INTERMEDIATE SHAFT SPEED SENSOR "C" CIRCUIT NO SIGNAL	Repair the open circuit of harness or poor contact of connector.
8.CHECK INPUT SIGNAL FOR TCM. 1) Turn the ignition switch to OFF. 2) Connect all connectors. 3) Lift up the vehicle. 4) Start the engine. 5) Set the select lever to “D” range. 6) Read the data of «Secondary Pulley Speed» using Subaru Select Monitor.	Does the value of «Secondary Pulley Speed» change according to those of «Front Wheel Speed»-	Current condition is normal. Repair the poor contacts of harnesses of secondary speed sensor and transmission connector.	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2751 INTERMEDIATE SHAFT SPEED SENSOR "C" CIRCUIT NO SIGNAL
9.CHECK TRANSMISSION HARNESS. 1) Turn the ignition switch to OFF. 2) Disconnect the transmission connector. 3) Disconnect the secondary speed sensor connector. 4) Measure the resistance between transmission connector and secondary speed sensor connector. Connector & terminal (T14) No. 6 — (AT4) No. 3:	Is the resistance less than 1 --	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2751 INTERMEDIATE SHAFT SPEED SENSOR "C" CIRCUIT NO SIGNAL	Replace the transmission harness.
10.CHECK SECONDARY SPEED SENSOR. 1) Turn the ignition switch to OFF. 2) Replace the secondary speed sensor. Secondary Speed Sensor 3) Perform the Clear Memory Mode. Clear Memory Mode 4) Read the DTC.	Is DTC P2751 displayed-	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2751 INTERMEDIATE SHAFT SPEED SENSOR "C" CIRCUIT NO SIGNAL	The original secondary speed sensor is defective.
11.CHECK MAIN RELAY. 1) Turn the ignition switch to OFF. 2) Replace the main relay. 3) Perform the Clear Memory Mode. Clear Memory Mode 4) Read the DTC.	Is DTC P2751 displayed-	Replace the TCM. Transmission Control Module (TCM)	The original main relay is defective.

2. ENGINE TYPE EZ

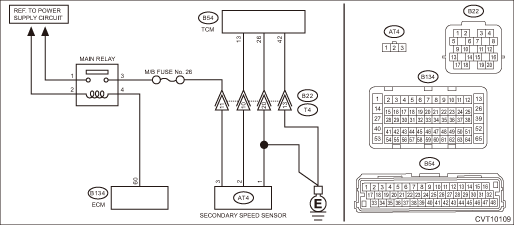

WIRING DIAGRAM:

CVT control system CVT Control System > WIRING DIAGRAM

STEP	CHECK	YES	NO
1.CHECK FUSE. 1) Turn the ignition switch to OFF. 2) Check the M/B fuse No. 26.	Is the fuse OK-	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2751 INTERMEDIATE SHAFT SPEED SENSOR "C" CIRCUIT NO SIGNAL	Replace the fuse. If the fuse blows out easily, repair the short circuit of harness.
2.CHECK ECM CONNECTOR. Check the connecting condition of ECM connector.	Is the ECM connector correctly connected-	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2751 INTERMEDIATE SHAFT SPEED SENSOR "C" CIRCUIT NO SIGNAL	Connect the ECM connector correctly.
3.CHECK HARNESS BETWEEN TRANSMISSION CONNECTOR AND MAIN RELAY CONNECTOR. 1) Turn the ignition switch to OFF. 2) Measure the voltage between transmission connector and engine ground. Connector & terminal (B22) No. 11 (+) — Engine ground (−):	Is the voltage 10 V or more-	Repair the harness and connector. NOTE: In this case, repair the following item: • Short circuit to power supply of harness between transmission connector and main relay connector • Defective main relay	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2751 INTERMEDIATE SHAFT SPEED SENSOR "C" CIRCUIT NO SIGNAL
4.CHECK HARNESS BETWEEN ECM AND MAIN RELAY CONNECTOR. 1) Turn the ignition switch to OFF. 2) Remove the main relay. 3) Disconnect the connector from ECM. 4) Measure the resistance between the ECM connector and engine ground. Connector & terminal (B134) No. 60 — Engine ground:	Is the resistance 1 M- or more-	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2751 INTERMEDIATE SHAFT SPEED SENSOR "C" CIRCUIT NO SIGNAL	Repair the short circuit to ground in harness between ECM connector and main relay connector.
5.CHECK HARNESS. 1) Turn the ignition switch to OFF. 2) Disconnect the TCM and transmission connectors. 3) Measure the resistance between TCM connector and transmission connectors. Connector & terminal (B54) No. 13 — (B22) No. 10: (B54) No. 26 — (B22) No. 20: (B54) No. 42 — (B22) No. 13:	Is the resistance less than 1 --	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2751 INTERMEDIATE SHAFT SPEED SENSOR "C" CIRCUIT NO SIGNAL	Repair the open circuit of harness.
6.CHECK HARNESS. Measure the resistance between TCM connector and chassis ground. Connector & terminal (B54) No. 13 — Chassis ground:	Is the resistance 1 M- or more-	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2751 INTERMEDIATE SHAFT SPEED SENSOR "C" CIRCUIT NO SIGNAL	Repair the short circuit of harness.
7.CHECK TRANSMISSION HARNESS. 1) Install the fuse. 2) Connect the TCM connector. 3) Turn the ignition switch to ON. 4) Measure the voltage between transmission connector terminals. Connector & terminal (B22) No. 11 (+) — Chassis ground (−):	Is the voltage 10 — 13 V-	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2751 INTERMEDIATE SHAFT SPEED SENSOR "C" CIRCUIT NO SIGNAL	Repair the open circuit of harness or poor contact of connector.
8.CHECK INPUT SIGNAL FOR TCM. 1) Turn the ignition switch to OFF. 2) Connect the transmission connector. 3) Lift up the vehicle. 4) Start the engine. 5) Set the select lever to “D” range. 6) Read the data of «Secondary Pulley Speed» using Subaru Select Monitor.	Does the value of «Secondary Pulley Speed» change according to those of «Front Wheel Speed»-	Current condition is normal. Repair the poor contacts of harnesses of secondary speed sensor and transmission connector.	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2751 INTERMEDIATE SHAFT SPEED SENSOR "C" CIRCUIT NO SIGNAL
9.CHECK TRANSMISSION HARNESS. 1) Turn the ignition switch to OFF. 2) Disconnect the transmission connector. 3) Disconnect the secondary speed sensor connector. 4) Measure the resistance between transmission connector and secondary speed sensor connector. Connector & terminal (T4) No. 10 — (AT4) No. 2: (T4) No. 11 — (AT4) No. 3: (T4) No. 13 — (AT4) No. 1: (T4) No. 20 — (AT4) No. 1:	Is the resistance less than 1 --	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2751 INTERMEDIATE SHAFT SPEED SENSOR "C" CIRCUIT NO SIGNAL	Replace the transmission harness.
10.CHECK SECONDARY SPEED SENSOR. 1) Turn the ignition switch to OFF. 2) Replace the secondary speed sensor. Secondary Speed Sensor 3) Perform the Clear Memory Mode. Clear Memory Mode 4) Read the DTC.	Is DTC P2751 displayed-	Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P2751 INTERMEDIATE SHAFT SPEED SENSOR "C" CIRCUIT NO SIGNAL	The original secondary speed sensor is defective.
11.CHECK MAIN RELAY. 1) Turn the ignition switch to OFF. 2) Replace the main relay. 3) Perform the Clear Memory Mode. Clear Memory Mode 4) Read the DTC.	Is DTC P2751 displayed-	Replace the TCM. Transmission Control Module (TCM)	The original main relay is defective.

3. OUTLINE OF DIAGNOSIS

• Detect the no input signal from the secondary speed sensor.

• Judge as NG if there is no input signal from the secondary pulley speed sensor, while the primary pulley speed sensor has the input signal although the primary and secondary pulleys are interlocked via the chain.

4. EXECUTION CONDITION

Secondary Parameters	Execution condition
12 V battery system voltage	≥ 9 V
Transmission range	Drive or Reverse
Measured primary pulley shaft speed	≥ 1000 rpm

5. DIAGNOSTIC METHOD

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

Judgment Value

Malfunction Criteria	Threshold Value
Measured secondary pulley shaft speed	0 rpm

Time Needed for Diagnosis: 0.5 seconds

Malfunction Indicator Light Illumination: Illuminates as soon as a malfunction occurs.
