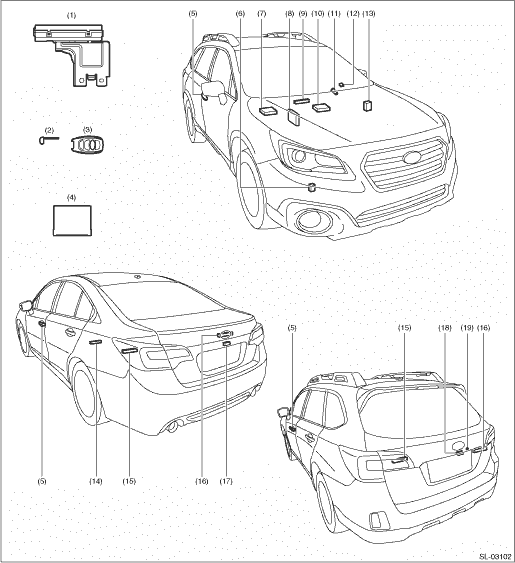

(1)	Keyless access CM	(8)	ECM	(14)	Center interior antenna
(2)	Mechanical key	(9)	Front interior antenna	(15)	Rear interior antenna
(3)	Access key	(10)	TCM (engine type: FB)	(16)	Rear exterior antenna
(4)	ID code box (For C0 and C5 model only)	(11)	Push button ignition switch	(17)	Trunk opener button
(5)	Front outer handle (front exterior antenna) – Touch sensor (lock) – Touch sensor (unlock)	(12)	Steering lock CM	(18)	Rear gate opener button
(6)	Access buzzer	(13)	Body integrated unit	(19)	Rear lock button
(7)	TCM (engine type: EZ)

Clear memory mode operation

1. On «Start» display, select «Diagnosis».2. On «Vehicle selection» display, input the target vehicle information and select «Confirmed».3. On «Main Menu» display, select «Each System».4. ...

General diagnostic table inspection

1. IMMOBILIZER SYSTEMSymptomsNoteEngine does not start Diagnostics with Phenomenon > INSPECTION Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC B2784 ANTENNA CIRCUIT (PUSH ENGINE SWITCH) ...
