Subaru Legacy BN/BS (2015-2019) Service Manual: Electrical component location location

Subaru Legacy BN/BS (2015-2019) Service Manual / Power rear gate system (diagnostics) / Electrical component location location

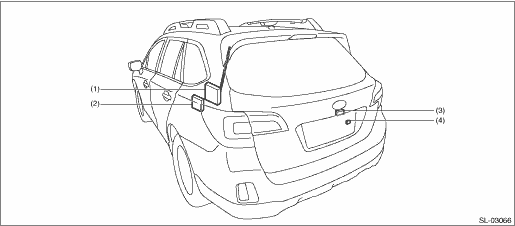

(1)	Power rear gate drive unit (PRG DU)	(3)	Rear gate opener button	(4)	Power rear gate buzzer
(2)	Power rear gate control module (PRG CM)

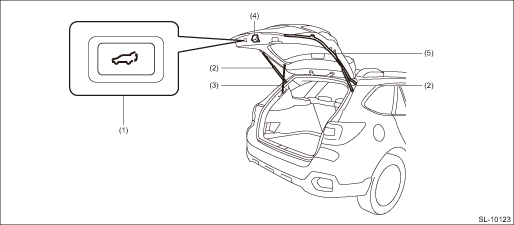

(1)	Power rear gate inner switch	(3)	Rod - power rear gate	(5)	Power rear gate touch sensor
(2)	Gas damper	(4)	Power rear gate auto closer

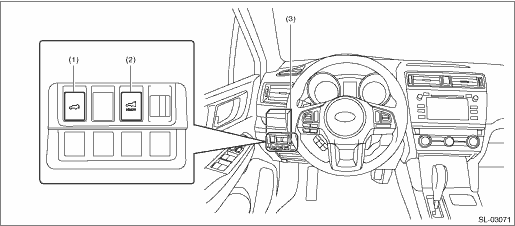

(1)

Power rear gate driver’s switch

(2)

Memory height switch

(3)

Body integrated unit

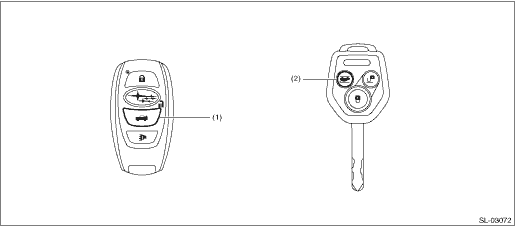

(1)

Rear gate/trunk SW (access key)

(with keyless access with push button start system)

(2)

Rear gate/trunk SW (keyless transmitter)

(without keyless access with push button start system)
