Subaru Legacy BN/BS (2015-2019) Service Manual: Electrical component location location

Subaru Legacy BN/BS (2015-2019) Service Manual / Blind spot detection rear cross traffic alert (diagnostics) / Electrical component location location

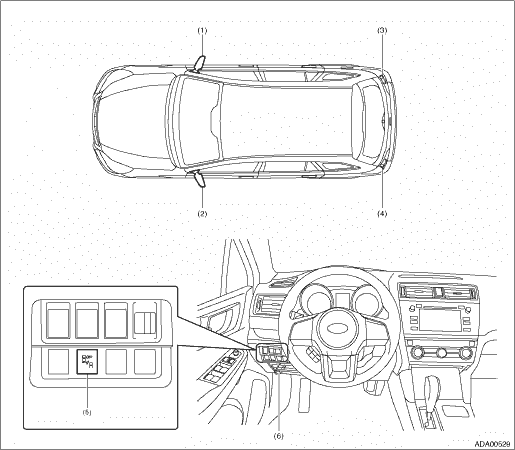

(1)	Outer mirror ASSY RH	(3)	Radar sensor RH (slave)	(5)	BSD/RCTA OFF switch
(2)	Outer mirror ASSY LH	(4)	Radar sensor LH (master)	(6)	Data link connector

Diagnostics with phenomenon inspection

SymptomsMaintenance partsBSD/RCTA does not operate.FuseLAN system Basic Diagnostic ProcedureBody control system Basic Diagnostic ProcedureRadar sensor LHRadar sensor RHBSD/RCTA cannot be turned OFF. ...

Inspection mode operation

It is possible to diagnose the DTC by performing the indicated inspection mode. After correcting the DTC, perform a necessary inspection mode and make sure that the function is resumed correctly and t ...
