Subaru Legacy BN/BS (2015-2019) Service Manual: Harness components location location

Subaru Legacy BN/BS (2015-2019) Service Manual / Wiring system / Harness components location location

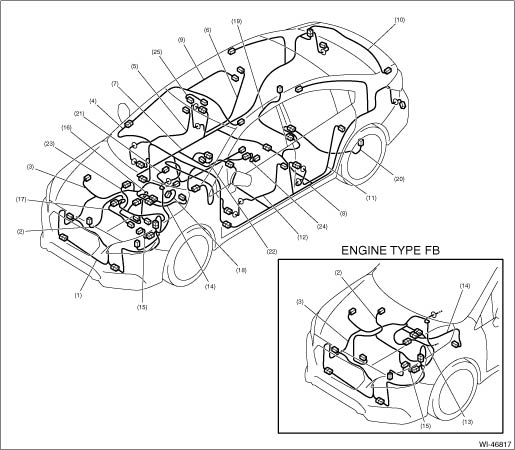

1. SEDAN MODEL

(1)

Front wiring harness

(10)

Trunk lid cord

(18)

Inhibitor harness

(2)

Engine wiring harness

(11)

Rear door cord LH

(19)

Parking brake sub wiring harness RH

(3)

Bulkhead wiring harness

(12)

Front door cord LH

(20)

Parking brake sub wiring harness LH

(4)

Instrument panel wiring harness

(13)

Transmission cord (MT model)

(21)

Adapter cord

(5)

Front door cord RH

(14)

Transmission cord (CVT model)

(22)

Occupant sensor harness

(6)

Rear door cord RH

(15)

Generator cord

(23)

Electrical power steering harness

(7)

Rear wiring harness RH

(16)

Oxygen sensor cord

(24)

Power socket adapter harness

(8)

Rear wiring harness LH

(17)

Engine sub wiring harness

(25)

Spot map light cord

(9)

Roof cord

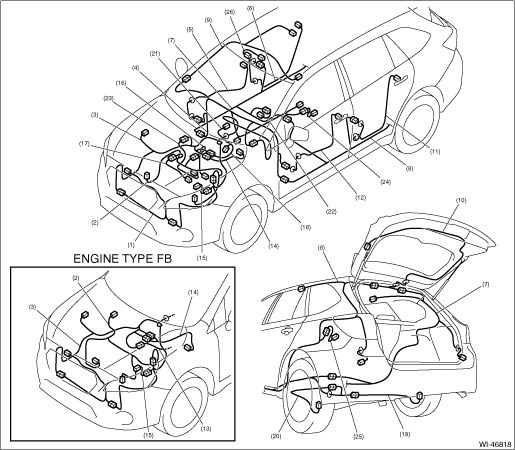

2. OUTBACK MODEL

(1)

Front wiring harness

(10)

Rear gate cord

(19)

Parking brake sub wiring harness RH

(2)

Engine wiring harness

(11)

Rear door cord LH

(20)

Parking brake sub wiring harness LH

(3)

Bulkhead wiring harness

(12)

Front door cord LH

(21)

Adapter cord

(4)

Instrument panel wiring harness

(13)

Transmission cord (MT model)

(22)

Occupant sensor harness

(5)

Front door cord RH

(14)

Transmission cord (CVT model)

(23)

Electrical power steering harness

(6)

Rear door cord RH

(15)

Generator cord

(24)

Power socket adapter harness

(7)

Rear wiring harness RH

(16)

Oxygen sensor cord

(25)

Power rear gate drive unit cord

(8)

Rear wiring harness LH

(17)

Engine sub wiring harness

(26)

Spot map light cord

(9)

Roof cord

(18)

Inhibitor harness
