Subaru Legacy BN/BS (2015-2019) Service Manual: Inspection

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr580) / Drive pinion shaft assembly / Inspection

• Make sure that all component parts are free of scratches, holes and other faults.

• Check the tooth contact. Drive Pinion Shaft Assembly > ADJUSTMENT

• Apply CVTF to bearing and rotate the bearing to check for noise or dragging etc.

• Check the starting torque of drive pinion shaft.

CAUTION:

Before measuring, apply differential gear oil to roller of bearing and rotate the bearing several times.

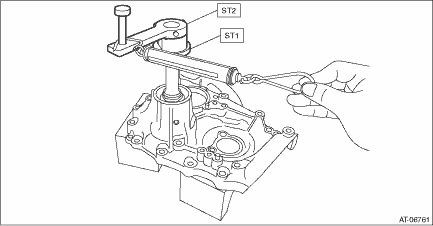

ST1 498937110

HOLDER

ST2 499787700

WRENCH

Starting torque:

5.1 — 17.1 N (0.5 — 1.7 kgf, 1.1 — 3.8 lbf)

Installation

1. Clean the mating surface of drive pinion retainer and converter case.2. Adjust the backlash and tooth contact between drive pinion shaft assembly and the front differential side gear. Drive Pinion ...

Disassembly

1. Flatten the tab of the lock nut.2. Using ST1, ST2 and ST3, fix at the spline portion of drive pinion shaft to remove the lock nut.ST1 499787500ADAPTERST2 499787700WRENCHST3 498937110HOLDER ...
