1. Check that the knock sensor has no deformation, cracks or other damages.

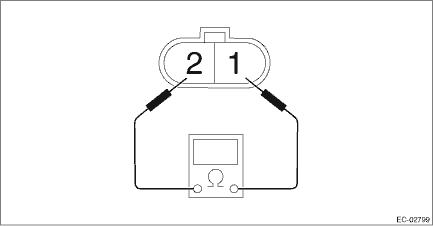

2. Measure the resistance between knock sensor terminals.

Terminal No.	Standard
1 and 2	560±28 k-
