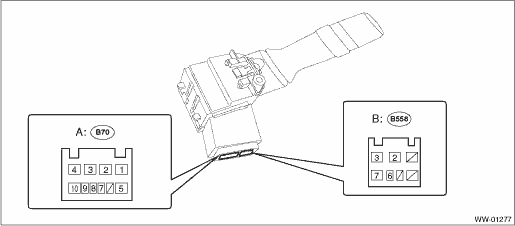

1. INSPECTION OF SWITCH UNIT 1. Operate the switches to check the continuity between terminals. Preparation tool: Circuit tester
2. Replace the switch if the inspection result is not within the standard value. 3. Install the switch assembly - combination wiper select. Combination Switch (Wiper) > INSTALLATION 2. FRONT WIPER 1. Check with Subaru Select Monitor (1) Check the input signal when the switch assembly - combination wiper select is turned to LO or HI, using the current data display. (2) Does the input signal change corresponding to the switch operation- • Yes > Finish the diagnosis. • No > Check the harness. 2. Check the intermittent operation (inspection of the wiper switch alone) (1) Set the voltmeter between terminals No. A2 (+) and No. B2 (−). (2) Connect the battery to connector. (Terminal No. A2 (+), terminal No. B2 & A3 (−)) (3) Turn the switch assembly - combination wiper select to INT. (4) Connect the battery (+) to the terminal No. A2 for 5 seconds. (5) Connect the battery (−) to the terminal No. B2, and check the voltage between terminals No. A2 and No. A3 during intermittent operation. (6) Perform step (1) to (5) above when intermittent control switch is in MIN or MAX, and replace the switch if the operation is not as specified. Intermittent stationary time MIN: Approx. 2 seconds MAX: Approx. 16 seconds
3. REAR WIPER 1. Check input of body integrated unit Check the input signal when the rear wiper switch is operated using Subaru Select Monitor. (1) Turn the ignition switch to ON. (2) Operate the rear wiper switch to ON and Washer ON. (3) Does the input signal change corresponding to the switch operation- • Yes > Go to step 4. • No > Go to step 2. 2. Check harness (1) Turn the ignition switch to OFF, disconnect the ground cable from battery. (2) Disconnect the connector of body integrated unit and wiper switch. (3) Measure the resistance between body integrated unit and wiper switch. Connector & terminal (i81) No. 1 — (i69) No. 5: (4) Is the resistance less than 10 -- • Yes > Go to step 3. • No > Repair the harness between the body integrated unit and wiper switch. 3. Check input voltage of body integrated unit (1) Connect the ground cable to battery. (2) Turn the ignition switch to ON and check the input voltage of body integrated unit. Connector & terminal (B280) No. 4 (+) — Chassis ground (−): (B280) No. 7 (+) — Chassis ground (−): (B281) No. 32 (+) — Chassis ground (−): (3) Is the voltage 10 V or more- • Yes > Go to step 4. • No > Check the harness and fuse. 4. Check output of body integrated unit Check the output signal when the rear wiper switch is operated using Subaru Select Monitor. (1) Turn the ignition switch to ON. (2) Operate the rear wiper switch to ON and Washer ON. (3) When the operation in step (2) is performed, check the output signal of body integrated unit to rear wiper motor. (4) When the rear wiper switch is set to ON, is ON output continuous- Also, when the washer is set to ON, is ON output- • Yes > Go to step 5. • No > Replace the body integrated unit. Body Integrated Unit 5. Check harness between body integrated unit and rear wiper motor (1) Turn the ignition switch to OFF, disconnect the ground cable from battery. (2) Disconnect the connector of body integrated unit and wiper switch. (3) Measure the resistance between the harness connector terminals of the body integrated unit and rear wiper motor. Connector & terminal (i81) No. 1 — (B147) No. 1: (4) Is the resistance less than 10 -- • Yes > Go to step 6. • No > Repair the open circuit of the harness between body integrated unit and rear wiper motor. 6. Check power supply circuit of the rear wiper motor (1) Disconnect the harness connector of the rear wiper motor. (2) Turn the ignition switch to ON. (3) Measure the voltage between the rear wiper motor harness connector terminal and chassis ground. Connector & terminal (B147) No. 2 (+) — Chassis ground (−): (4) Is the voltage 10 V or more- • Yes > Go to step 7. • No > Check the fuse (No. 42 in main fuse box). 7. Check ground circuit of rear wiper motor (1) Turn the ignition switch to OFF. (2) Measure the resistance between the rear wiper motor harness connector terminal and chassis ground. Connector & terminal (B147) No. 1 — Chassis ground: (3) Is the resistance less than 10 -- • Yes > Go to step 8. • No > Repair the open circuit of the rear wiper motor ground circuit. 8. Check harness between body integrated unit and rear wiper motor (1) Turn the ignition switch to OFF. (2) Disconnect the harness connector of body integrated unit. (3) Disconnect the harness connector of the rear wiper motor. (4) Measure the resistance between the harness connector terminals of the body integrated unit and rear wiper motor. Connector & terminal (i81) No. 1 — (B147) No. 1: (5) Is the resistance less than 10 -- • Yes > Go to step 9. • No > Repair the open circuit of the harness between body integrated unit and rear wiper motor. 9. Check output of body integrated unit (1) Connect the harness connector of body integrated unit. (2) Disconnect the connector of the rear wiper motor. (3) Turn the ignition switch to ON. (4) Measure the voltage between rear wiper motor connector and chassis ground. Connector & terminal (B147) No. 2 (+) — Chassis ground (−): (5) Is the voltage less than 1.5 V when the rear wiper switch is OFF, and is the voltage 10 V or more when the rear wiper switch is ON- • Yes > Go to step 10. • No > Replace the body integrated unit. Body Integrated Unit 10. Check operation of rear wiper motor (1) Remove the rear wiper motor. (2) Check the rear wiper motor. Rear Wiper Motor > INSPECTION (3) Does the rear wiper motor rotate normally- • Yes > Finished. • No > Replace the rear wiper motor assembly. NOTE: Rear wiper intermittent time
|
