Subaru Legacy BN/BS (2015-2019) Service Manual: Inspection

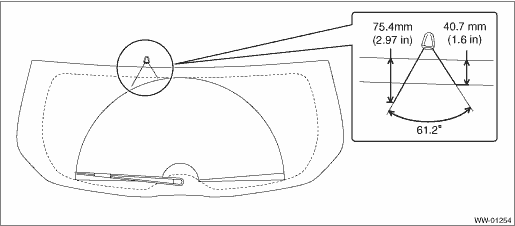

1. VISUAL INSPECTION Check for the following items, and if any malfunction is found, replace the corresponding part. • Make sure the nozzle - rear washer and the hose - rear washer are not clogged. • Make sure the hose - rear washer is not bent. 2. INSPECTING THE SPRAY POSITION 1. Turn the wiper switch to OFF position. 2. While the vehicle is stopped, check that the washer spray position is as shown in the figure. 3. After inspection, if the spray position is significantly out of the specified range, replace the nozzle - rear washer with a new part.
|
Removal
1. Disconnect the ground terminal from battery sensor. NOTE2. Remove the roof spoiler. Roof Spoiler > REMOVAL3. Remove the nozzle - rear washer.CAUTION:Before removing, apply protective tape to the ...
Installation
1. Connect the hose assembly - rear washer, and install the nozzle - rear washer.2. Install the roof spoiler. Roof Spoiler > INSTALLATION3. Connect the ground terminal to battery sensor. NOTE ...
