Subaru Legacy BN/BS (2015-2019) Service Manual: Inspection

Subaru Legacy BN/BS (2015-2019) Service Manual / Communication system / Horn / Inspection

1. Remove the horn assembly (Hi side & Lo side). Horn > REMOVAL

2. Check the horn sounds when applying the battery voltage to the horn assembly.

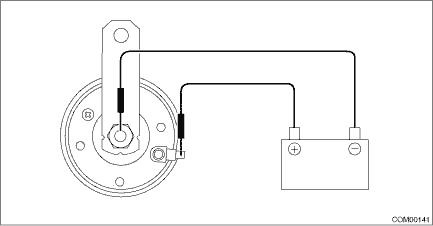

• Horn assembly - Lo side

Terminal No.	Inspection conditions	Specification
1 (+) — Horn case (−)	Connect battery to the terminals	Sounds

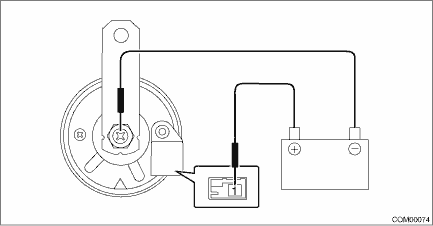

• Horn assembly - Hi side

Terminal No.	Inspection conditions	Specification
1 (+) — Horn case (−)	Connect battery to the terminals	Sounds

3. If it does not operate normally, replace the horn assembly.
