Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Brake / Front brake pad / Installation

1. 16-INCH TYPE

NOTE:

Before installation, remove mud and foreign matter from the caliper body assembly and support - front disc brake.

1. Check the brake pad. Front Brake Pad > INSPECTION

2. Apply a thin coat of grease to the support - front disc brake.

Grease:

Support - front disc brake: Molykote G-5029 or equivalent

3. Apply a thin coat of grease to the shim - disc brake front and the pad - disc brake front.

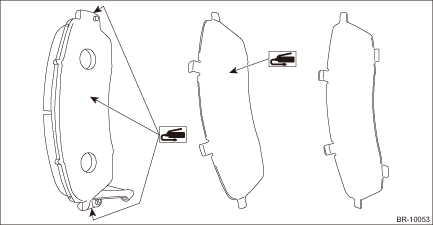

• Inner side:

Apply a thin coat of grease to the both sides of shim - disc brake front inner and the pad - disc brake front.

Grease:

Shim and pad: Molykote M77 or equivalent

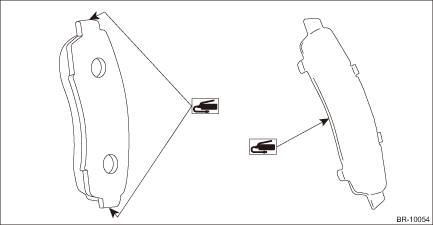

• Outer side:

Apply a thin coat of grease to the pad - disc brake front.

Grease:

Shim and pad: Molykote M77 or equivalent

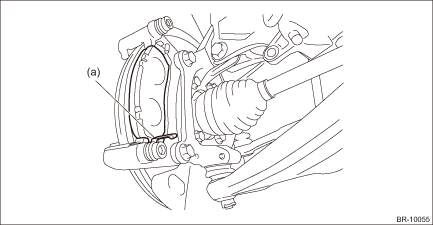

4. Install the spring - brake pad and the pad - disc brake front.

NOTE:

Install so that the pad indicator faces the inner side.

(a)

Pad indicator

5. Install the caliper body assembly.

Tightening torque:

50 N·m (5.1 kgf-m, 36.9 ft-lb)

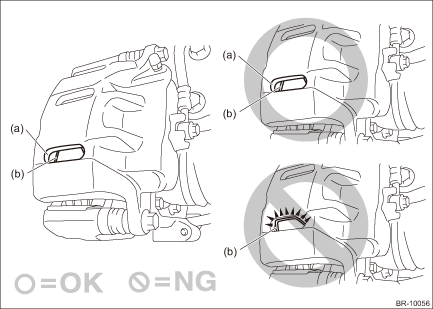

NOTE:

Install so that the spring - brake pad (b) does not protrude out of the hole (a).

6. Install the front wheels.

Tightening torque:

120 N·m (12.2 kgf-m, 88.5 ft-lb)

2. 17-INCH TYPE

NOTE:

Before installation, remove mud and foreign matter from the caliper body assembly and support - front disc brake.

1. Check the brake pad. Front Brake Pad > INSPECTION

2. Apply a thin coat of grease to the pad clip.

Grease:

Pad clip: Item contained in the pad kit or equivalent

3. Install the pad - disc brake front.

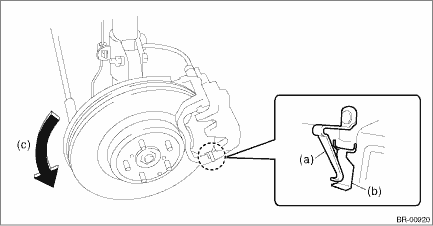

CAUTION:

• Be sure to install so that the pad return spring faces the input side of the direction of disc rotor rotation, as shown in the figure.

• Correctly install the pad return spring to the supporting surface of the pad clip as shown in the figure.

• If the pad return spring is deformed or damaged, replace the pad - disc brake front with a new part.

(a)

Pad return spring

(b)

Supporting surface of pad clip

(c)

Disc rotor rotation direction

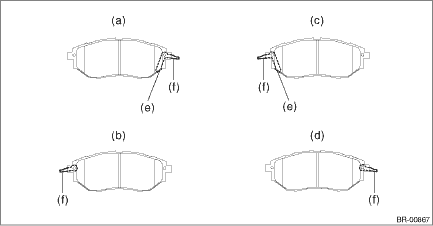

NOTE:

Install the pad indicator in proper direction.

(a)	LH — IN	(c)	RH — IN	(e)	Pad indicator
(b)	LH — OUT	(d)	RH — OUT	(f)	Pad return spring

4. Install the caliper body assembly.

Tightening torque:

27 N·m (2.8 kgf-m, 19.9 ft-lb)

5. Install the front wheels.

Tightening torque:

120 N·m (12.2 kgf-m, 88.5 ft-lb)
