1. FRONT DIFFERENTIAL SIDE

1. Install the air breather hose.

NOTE:

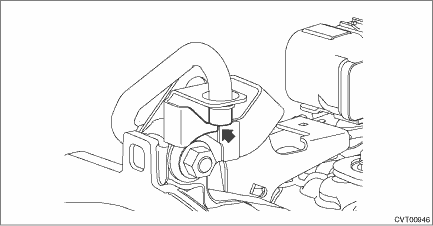

Securely insert the air breather hose until the hose end contacts the catch of the transmission hanger.

2. Install the air intake boot assembly. Air Intake Boot > INSTALLATION

2. TRANSMISSION CASE SIDE

1. Install the air breather hose.

2. Install the transmission case cover.

Tightening torque:

8 N·m (0.8 kgf-m, 5.9 ft-lb)

3. Install the transmission assembly. Automatic Transmission Assembly > INSTALLATION

Inspection

Check the hose for peeling, crack or clogging. ...
