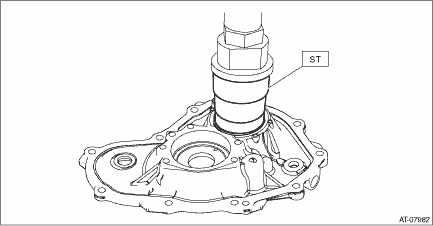

1. Clean the mating surface of converter case cover and converter case. 2. Adjust the shims of front reduction drive gear and front reduction driven gear. Front Reduction Drive Gear > ADJUSTMENT Front Reduction Driven Gear > ADJUSTMENT 3. Apply CVTF to the selected shims and install on the bearing catch surface of the front reduction driven gear. 4. Using the ST, install the ball bearing to the converter case cover. NOTE: Use a new ball bearing.

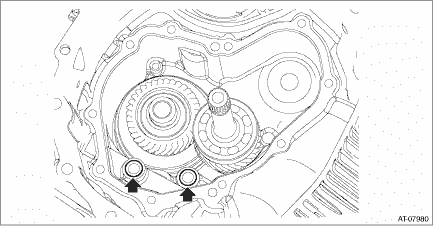

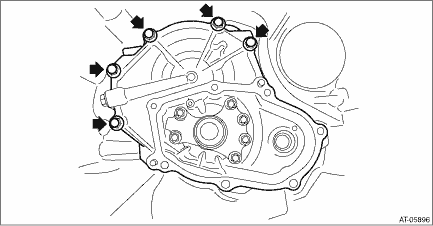

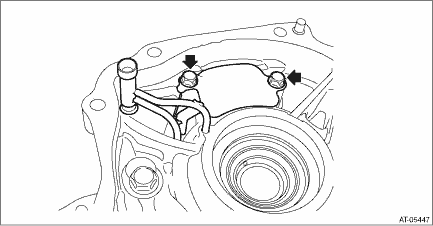

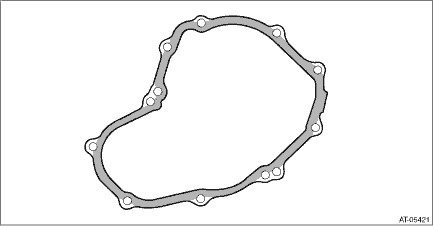

5. Install the O-rings. NOTE: • Use new O-rings. • Apply CVTF to the O-rings. 6. Apply CVTF to the selected shims and install on the bearing catch surface of the front reduction drive gear. 7. Install the seal ring to converter case cover. NOTE: • Use new seal rings. • When installing the seal rings, do not expand the seal rings too much. 8. Apply liquid gasket seamlessly to the mating surface of converter case cover. Liquid gasket: THREE BOND 1215B or equivalent 9. Install the converter case cover. Tightening torque: 24 N·m (2.4 kgf-m, 17.7 ft-lb) 10. Install the oil pump chain cover and the oil pump chain. Oil Pump Chain > INSTALLATION 11. Flip over the converter case cover. 12. Install the oil stopper plate and lubrication pipe. Tightening torque: 9 N·m (0.9 kgf-m, 6.6 ft-lb) 13. Install the drive pinion shaft assembly. Drive Pinion Shaft Assembly > INSTALLATION 14. Install the primary pulley, secondary pulley and variator chain. Primary Pulley and Secondary Pulley > INSTALLATION 15. Install the transmission case. Transmission Case > INSTALLATION 16. Install the forward clutch assembly. Forward Clutch Assembly > INSTALLATION 17. Install the intermediate case. Intermediate Case > INSTALLATION 18. Install the transfer reduction driven gear assembly. Transfer Reduction Driven Gear > INSTALLATION 19. Install the transfer clutch assembly. Transfer Clutch > INSTALLATION 20. Install the rear drive shaft. Rear Drive Shaft > INSTALLATION 21. Install the extension case. Extension Case > INSTALLATION 22. Install the transmission harness. Transmission Harness > INSTALLATION 23. Install the control valve body and oil pan. Control Valve Body > INSTALLATION 24. Install the air breather hose. Air Breather Hose > INSTALLATION 25. Install the transmission assembly to the vehicle. Automatic Transmission Assembly > INSTALLATION |
