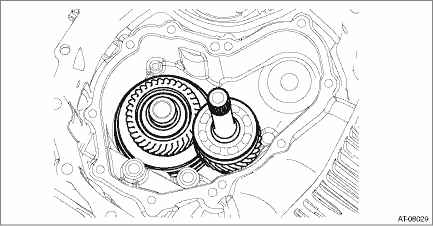

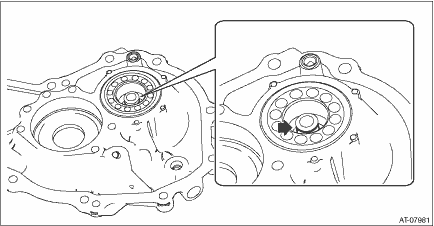

1. Clean the mating surface of converter case cover and converter case. 2. Select the shim for front reduction drive gear. Front Reduction Drive Gear > ADJUSTMENT 3. Apply CVTF to the shims and install on the bearing catch surface of the front reduction driven gear. 4. Install the seal ring to converter case cover. NOTE: • Use new seal rings. • When installing the seal rings, do not expand the seal rings too much. 5. Install the front reduction drive gear and front reduction driven gear together. CAUTION: Be careful not to detach the spline of input clutch and the spline of front reduction driven shaft. 6. Install the converter case cover. Converter Case Cover > INSTALLATION 7. Install the drive pinion shaft assembly. Drive Pinion Shaft Assembly > INSTALLATION 8. Install the primary pulley, secondary pulley and variator chain. Primary Pulley and Secondary Pulley > INSTALLATION 9. Install the transmission case. Transmission Case > INSTALLATION 10. Install the forward clutch assembly. Forward Clutch Assembly > INSTALLATION 11. Install the intermediate case. Intermediate Case > INSTALLATION 12. Install the transfer reduction driven gear assembly. Transfer Reduction Driven Gear > INSTALLATION 13. Install the transfer clutch assembly. Transfer Clutch > INSTALLATION 14. Install the rear drive shaft. Rear Drive Shaft > INSTALLATION 15. Install the extension case. Extension Case > INSTALLATION 16. Install the primary speed sensor. Primary Speed Sensor > INSTALLATION 17. Install the transmission harness. Transmission Harness > INSTALLATION 18. Install the control valve body and oil pan. Control Valve Body > INSTALLATION 19. Install the air breather hose. Air Breather Hose > INSTALLATION 20. Install the transmission assembly to the vehicle. Automatic Transmission Assembly > INSTALLATION |
