Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Oil pump chain / Installation

1. Clean the mating surface of oil pump chain cover and converter case cover.

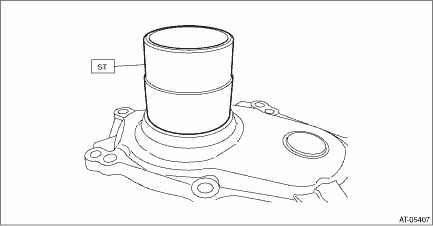

2. Using the ST, install the oil seal.

ST 499755602

PRESS SNAP RING

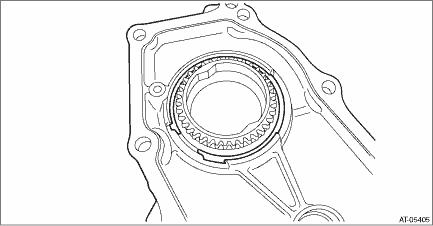

3. Install the drive sprocket and install the snap ring.

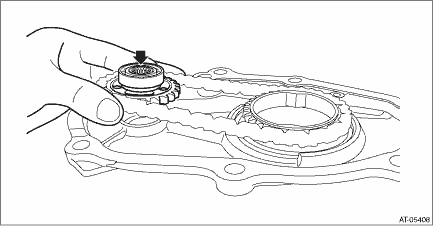

4. Place the oil pump chain on drive sprocket.

5. Place the oil pump chain on driven sprocket and install the driven sprocket to oil pump chain cover.

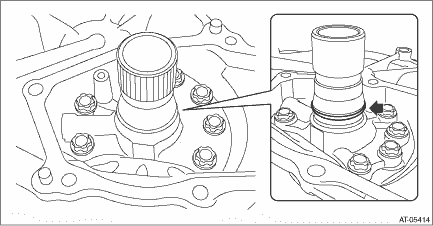

6. Install the seal ring to center support COMPL.

NOTE:

• Use new seal rings.

• Apply CVTF to the seal rings.

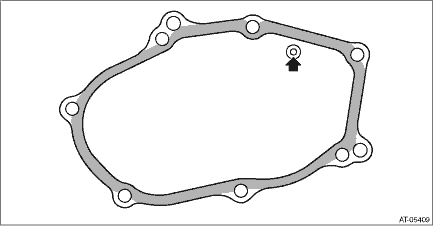

7. Apply liquid gasket seamlessly to the mating surface of oil pump chain cover.

CAUTION:

Do not apply liquid gasket at the arrowed hole.

Liquid gasket:

THREE BOND 1215B or equivalent

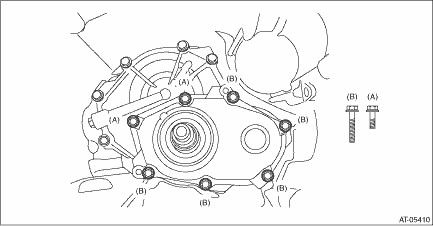

8. Install the oil pump chain cover.

NOTE:

There are two types of bolt.

Tightening torque:

24 N·m (2.4 kgf-m, 17.7 ft-lb)

9. Install the torque converter assembly. Torque Converter Assembly > INSTALLATION

10. Install the transmission assembly to the vehicle. Automatic Transmission Assembly > INSTALLATION
