Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Reduction driven gear / Installation

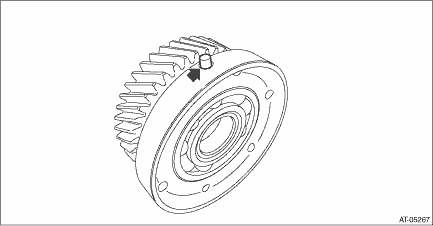

1. Install the straight pin to reduction driven gear assembly.

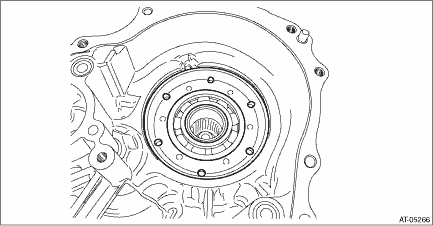

2. Fit the straight pin portion to the recess portion of transmission case and install the reduction driven gear and install the snap ring.

3. Select the snap ring. Reduction Driven Gear > ADJUSTMENT

4. Replace with the selected snap ring.

NOTE:

If the clearance measured in step 3) is within standard, the snap ring replacement is not necessary.

5. Install the forward clutch assembly. Forward Clutch Assembly > INSTALLATION

6. Install the intermediate case. Intermediate Case > INSTALLATION

7. Install the transfer reduction driven gear assembly. Transfer Reduction Driven Gear > INSTALLATION

8. Install the transfer clutch assembly. Transfer Clutch > INSTALLATION

9. Install the rear drive shaft. Rear Drive Shaft > INSTALLATION

10. Install the extension case. Extension Case > INSTALLATION

11. Install the transmission to vehicle. Automatic Transmission Assembly > INSTALLATION

Adjustment

1. Measure clearance “A” between snap ring and transmission case.Specification:0.05 — 0.25 mm (0.002 — 0.01 in)2. If clearance “A” is out of standard, select the snap ring ...

Inspection

• Check the ball bearing for smooth rotation.• Check the ball bearing for excessive looseness.• Check the reduction driven gear for breakage or damage.• Check the clearance bet ...
