Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Continuously variable transmission(tr690) / Transmission case / Installation

1. Clean the mating surface of transmission case and converter case.

2. Install the control device system. Transmission Control Device > INSTALLATION

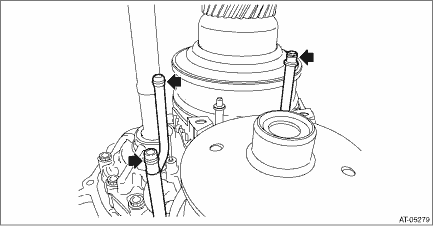

3. Install the O-ring to the lubrication pipe.

NOTE:

• Use new O-rings.

• Apply CVTF to the O-rings.

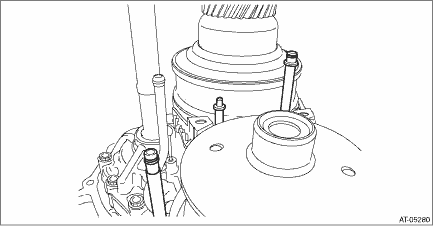

4. Make sure the lubrication pipe and support rod are in vertical position.

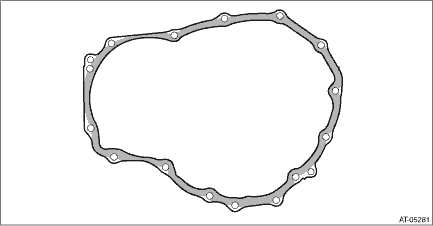

5. Apply liquid gasket seamlessly to the mating surface of transmission case.

Liquid gasket:

THREE BOND 1215B or equivalent

6. Install the transmission case.

CAUTION:

If the transmission case gets in contact with the lubrication pipe and support rod, do not install the transmission case forcibly.

NOTE:

• Install while checking the lubrication pipe and support rod is being inserted properly into transmission case.

• If installing the transmission is difficult, check if the lubrication pipe and support rod are bent.

• The total number of transmission case mounting bolts is 15.

Tightening torque:

41 N·m (4.2 kgf-m, 30.2 ft-lb)

7. Install the O-ring to CVTF pipe.

NOTE:

Use new O-rings.

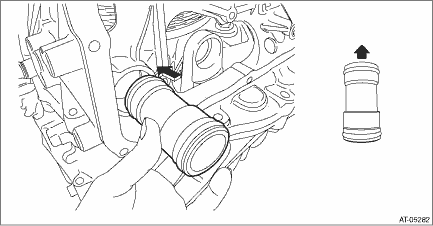

8. The smaller opening of CVTF pipe should be inserted to transmission.

NOTE:

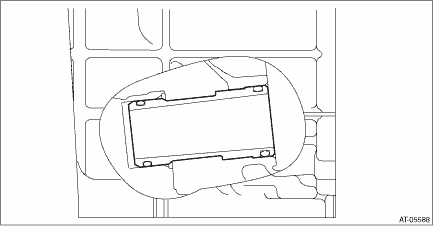

After installing, make sure the CVTF pipe does not stick out of transmission case.

9. Install the reduction driven gear. Reduction Driven Gear > INSTALLATION

10. Install the forward clutch assembly. Forward Clutch Assembly > INSTALLATION

11. Install the intermediate case. Intermediate Case > INSTALLATION

12. Install the transfer reduction driven gear assembly. Transfer Reduction Driven Gear > INSTALLATION

13. Install the transfer clutch assembly. Transfer Clutch > INSTALLATION

14. Install the rear drive shaft. Rear Drive Shaft > INSTALLATION

15. Install the extension case. Extension Case > INSTALLATION

16. Install the inhibitor switch. Inhibitor Switch > INSTALLATION

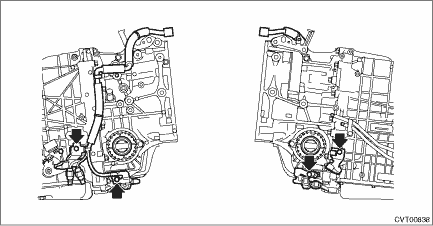

17. Install the oxygen sensor harness and harness bracket.

Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

18. Install the secondary speed sensor. Secondary Speed Sensor > INSTALLATION

19. Install the transmission harness. Transmission Harness > INSTALLATION

20. Install the control valve body and oil pan. Control Valve Body > INSTALLATION

21. Install the air breather hose. Air Breather Hose > INSTALLATION

22. Install the transmission assembly to the vehicle. Automatic Transmission Assembly > INSTALLATION

Adjustment

NOTE:When replacing the transmission case with a new part, perform the following check and adjustment for the selection.• Select the thrust bearing for the forward clutch assembly. Forward Clut ...

Inspection

• Check the transmission case for damage.• Check for leakage of CVTF from the connection between converter case and transmission case.• Check for leakage of CVTF from the connection ...
