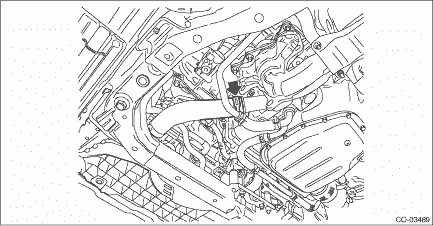

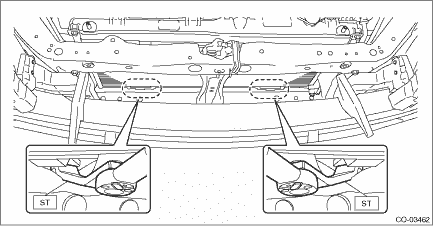

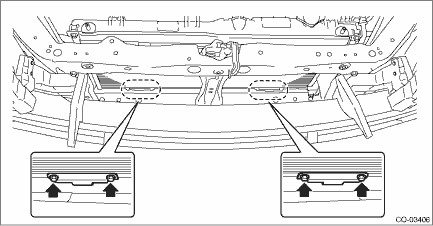

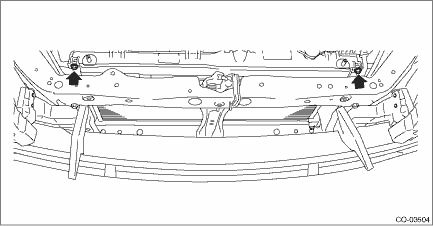

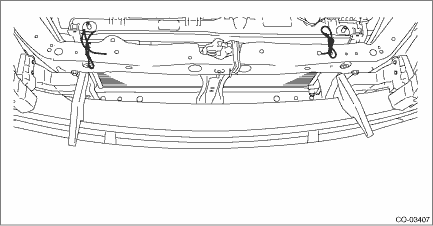

1. Install the radiator lower cushion to the vehicle body. 2. Install the radiator to vehicle. NOTE: Make pins on the lower side of radiator be fitted into the radiator lower cushions. 3. Remove the ropes or other means used to secure the condenser to the vehicle. 4. Temporarily tighten the bolts securing the condenser upper bracket to the radiator. 5. Position the condenser lower bracket, and install the bolts securing the condenser lower bracket to the condenser. Tightening torque: 3.9 N·m (0.4 kgf-m, 2.9 ft-lb) 6. Using the ST, tighten the bolts securing the condenser lower bracket to the radiator.

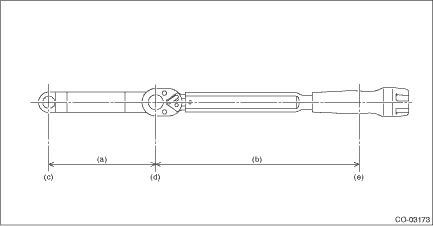

Tightening torque:

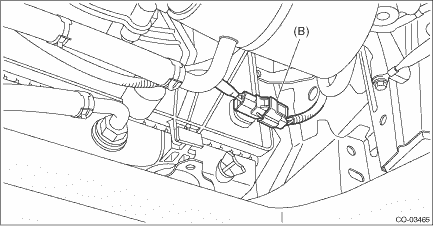

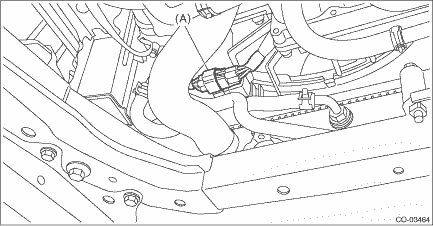

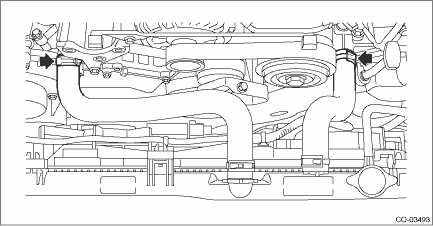

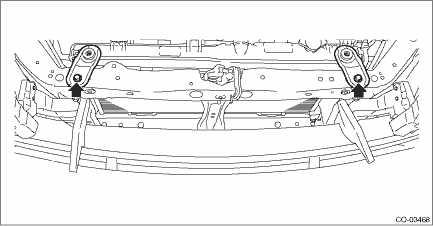

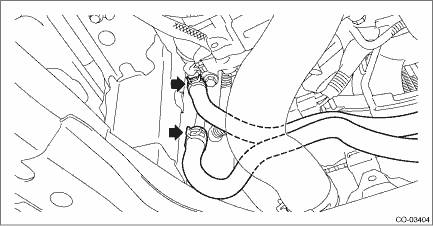

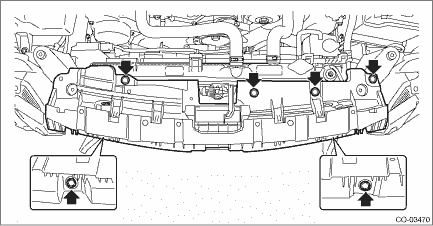

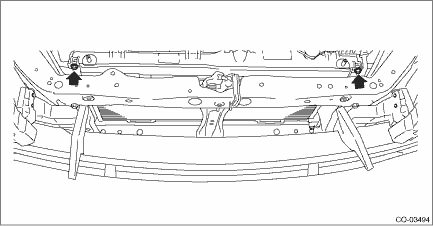

7. Tighten the bolts securing the condenser upper bracket to the radiator. Tightening torque: 7.5 N·m (0.8 kgf-m, 5.5 ft-lb) 8. Install the radiator upper bracket LH and the radiator upper bracket RH. Tightening torque: 12 N·m (1.2 kgf-m, 8.9 ft-lb) 9. Connect the radiator inlet hose LH and radiator inlet hose RH. 10. Install the reservoir tank. Reservoir Tank > INSTALLATION 11. Lift up the vehicle. 12. Connect the connector (A) and connector (B) to the radiator fan harness. 13. Connect the CVTF radiator inlet hose and CVTF radiator outlet hose to the CVTF pipe. NOTE: Use a new CVTF radiator hose. 14. Install the CVTF radiator inlet hose and CVTF radiator outlet hose to the clips of the radiator fan shroud. 15. Connect the radiator outlet hose to thermostat cover. 16. Install the under cover. Front Under Cover > INSTALLATION 17. Lower the vehicle. 18. Attach the grille bracket. 19. Install the front bumper. Front Bumper > INSTALLATION 20. Install the air intake duct. Air Intake Duct > INSTALLATION 21. Connect the ground terminal to battery sensor. NOTE 22. Fill engine coolant. Engine Coolant > REPLACEMENT 23. Check the CVTF level and replenish it if necessary. CVTF > INSPECTION 24. Install the collector cover. |
