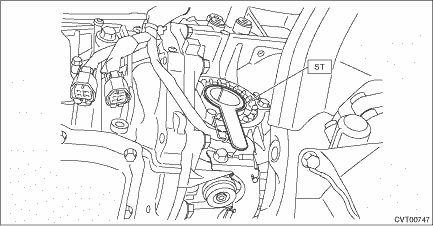

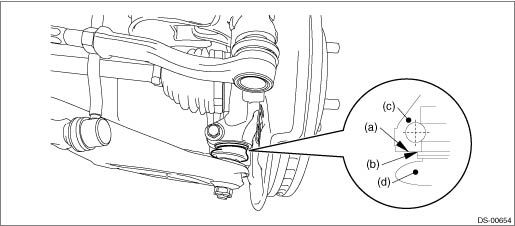

1. Before installation, check the drive shaft assembly. Front Drive Shaft > INSPECTION 2. Replace the differential side retainer oil seal with a new part. • MT model: Differential Side Retainer Oil Seal > REPLACEMENT • CVT model: Differential Side Retainer Oil Seal > REPLACEMENT Differential Side Retainer Oil Seal > REPLACEMENT CAUTION: After pulling out the drive shaft assembly, be sure to replace with a new oil seal. 3. Insert the drive shaft assembly into the hub spline, and pull it into the specified position. CAUTION: Do not hammer the drive shaft assembly when installing. 4. Tighten the new nut - axle temporarily. 5. Using the ST, install the front drive shaft assembly to the transmission. Preparation tool: ST: OIL SEAL PROTECTOR (28399SA010) 6. Install the ball joint assembly to the housing assembly - front axle. CAUTION: Before tightening, make sure the bottom surface of the housing assembly - front axle and the stepped section of ball joint are in contact. Tightening torque: 50 N·m (5.1 kgf-m, 36.9 ft-lb)
7. Install the stabilizer link. Tightening torque: 60 N·m (6.1 kgf-m, 44.3 ft-lb) 8. While depressing the brake pedal, tighten new nuts - axle to the specified torque. CAUTION: Do not load the front axle before tightening the nut - axle. Doing so may damage the hub unit COMPL. Tightening torque: 220 N·m (22.4 kgf-m, 162.3 ft-lb) 9. After tightening the nut - axle, lock it securely. 10. Fill transmission gear oil. (MT model) 11. Fill differential gear oil. (CVT model) 12. Install the front wheels. Tightening torque: 120 N·m (12.2 kgf-m, 88.5 ft-lb) 13. Inspect the wheel alignment and adjust if necessary. • Inspection: Wheel Alignment > INSPECTION • Adjustment: Wheel Alignment > ADJUSTMENT CAUTION: When the wheel alignment has been adjusted, perform the following adjustment. – Lane keep assist learning value clear (model with EyeSight): Clear Active Lane Keep System Learning Value > OPERATION – “VSC(VDC) Centering Mode”: VDC Control Module and Hydraulic Control Unit (VDCCM&H/U) > ADJUSTMENT 14. Perform reinitialization of the auto headlight beam leveler system. (Model with auto headlight beam leveler) Auto Headlight Beam Leveler System > PROCEDURE |
