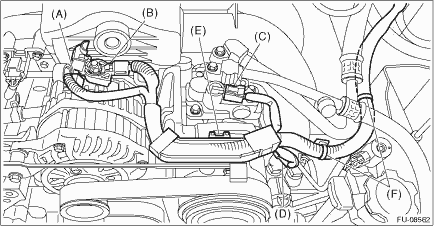

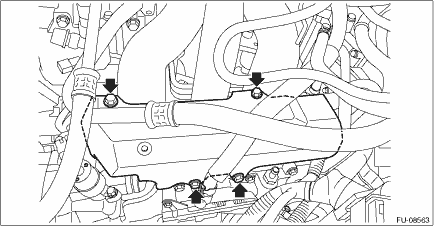

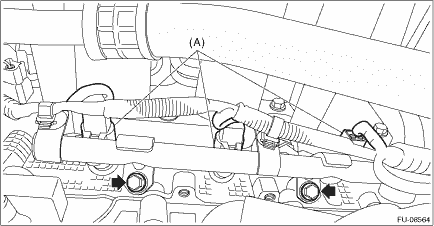

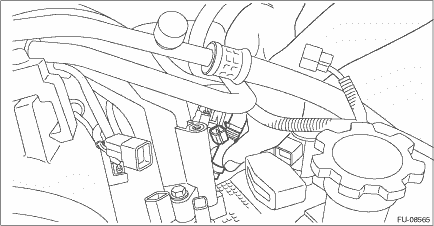

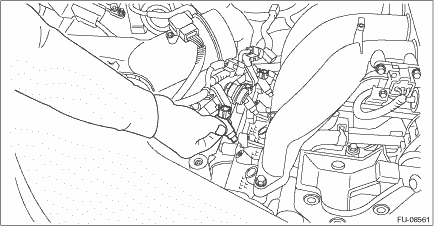

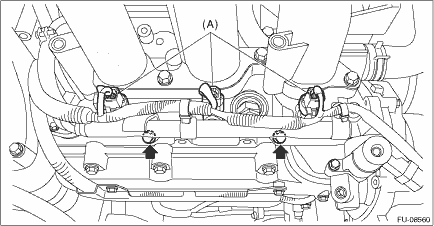

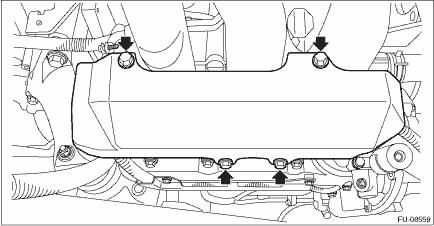

1. RH SIDE 1. Set the fuel injector to the fuel injector pipe RH, and install the fuel injector pipe RH and fuel injector as a unit to the cylinder head. NOTE: Use new O-rings, rubbers and seal rings. 2. Install the bolts securing the fuel injector pipe to the cylinder head, and connect the connector (A) to the fuel injector. Tightening torque: 19 N·m (1.9 kgf-m, 14.0 ft-lb) 3. Install the fuel pipe protector RH. Tightening torque: 19 N·m (1.9 kgf-m, 14.0 ft-lb) 4. Install the air intake boot. Air Intake Boot > INSTALLATION 5. Connect the ground terminal to battery sensor. NOTE 6. Install the collector cover. 2. LH SIDE 1. Set the fuel injector to the fuel injector pipe LH, and install the fuel injector pipe LH and fuel injector as a unit to the cylinder head. NOTE: Use new O-rings, rubbers and seal rings. 2. Install the bolts securing the fuel injector pipe to the cylinder head, and connect the connector (A) to the fuel injector. Tightening torque: 19 N·m (1.9 kgf-m, 14.0 ft-lb) 3. Install the fuel pipe protector RH. Tightening torque: 19 N·m (1.9 kgf-m, 14.0 ft-lb) 4. Connect the PCV hose. 5. Install the clip (F) securing the generator cord to the fuel pipe protector LH. 6. Connect the connectors (C) and (D) to the A/C compressor and attach the generator cord to clip (E). 7. Connect the connector (A) and terminal (B) to the generator. Tightening torque: 15 N·m (1.5 kgf-m, 11.1 ft-lb) 8. Connect the ground terminal to battery sensor. NOTE 9. Install the collector cover. |
