Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Lubrication(h4do) / Oil pressure switch / Installation

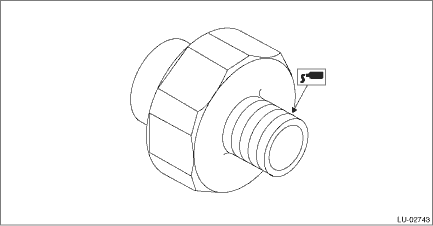

1. Apply liquid gasket to the oil pressure switch threads.

Liquid gasket:

THREE BOND 1324 (Part No. 004403042) or equivalent

2. Install the oil pressure switch to the chain cover, and connect the connector to the oil pressure switch.

Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

3. Connect the ground terminal to battery sensor. NOTE

Inspection

1. Check that the oil pressure switch does not have deformation, cracks or damage.2. Check the oil pressure switch installation portion for oil leakage and oil seepage. ...
