1. Install the 1st-2nd fork rod to the 1st-2nd shifter fork through the hole on the rear of the transmission case. 2. Align the holes on the 1st-2nd fork rod and 1st-2nd shifter fork, and drive the straight pin into these holes using the ST to fix. NOTE: Use a new straight pin.
3. Install the 3rd-4th fork rod to the 3rd-4th shifter fork through the hole on the rear of the transmission case. 4. Align the holes on the 3rd-4th fork rod and 3rd-4th shifter fork, and drive the straight pin into these holes using the ST to fix. NOTE: • Use a new straight pin. • Set other fork rods to neutral. • Check that the positions of interlock plunger is correct.
5. Install the 5th-6th fork rod into 5th-6th shifter fork, then insert through the hole on the rear of transmission case. Align the hole of the 5th-6th shifter fork with the hole on the transmission case, then insert the reverse fork rod to install the reverse shifter fork. 6. Align the holes on the 5th-6th fork rod and 5th-6th shifter fork and the holes on the reverse fork rod and reverse shifter fork, and drive the straight pin into these holes using the ST to fix. NOTE: • Use a new straight pin. • Set other fork rods to neutral. • Check that the positions of interlock plunger is correct.

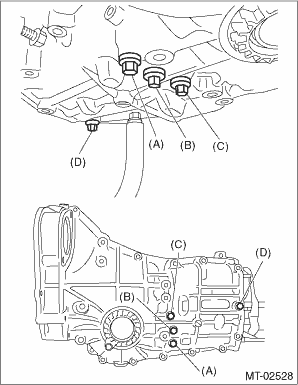

7. Install the check ball plugs, check ball springs and check balls. Tightening torque: 20 N·m (2.0 kgf-m, 14.8 ft-lb)
8. Install the reverse idler gear assembly. Reverse Idler Gear > INSTALLATION 9. Install the front differential assembly. Front Differential Assembly > INSTALLATION 10. Install the main shaft assembly. Main Shaft Assembly > INSTALLATION 11. Install the drive pinion shaft assembly. Drive Pinion Shaft Assembly > INSTALLATION 12. Install the transmission case. Transmission Case > INSTALLATION 13. Install the transfer case together with the extension case assembly. Transfer Case and Extension Case Assembly > INSTALLATION 14. Install the back-up light switch and the neutral position switch. Switches and Harness > INSTALLATION 15. Install the manual transmission assembly to the vehicle. Manual Transmission Assembly > INSTALLATION |
