Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

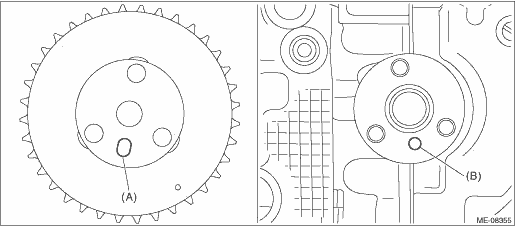

1. CAM SPROCKET RH • Intake cam sprocket RH 1. Install the intake cam sprocket RH by aligning the knock hole (A) of intake cam sprocket RH and the knock pin (B) of intake camshaft RH. NOTE: Before installation, check that there is no foreign matter on the intake cam sprocket RH and intake camshaft RH.

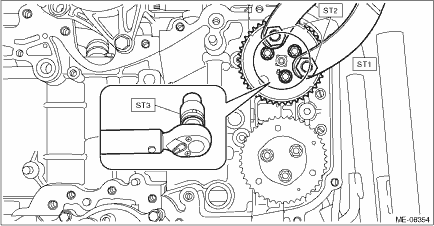

2. Hold the intake cam sprocket RH using the ST1 and ST2, and install the bolts using the ST3. CAUTION: Perform the operation carefully since the ST comes off easily.
Tightening torque: 18 N·m (1.8 kgf-m, 13.3 ft-lb)

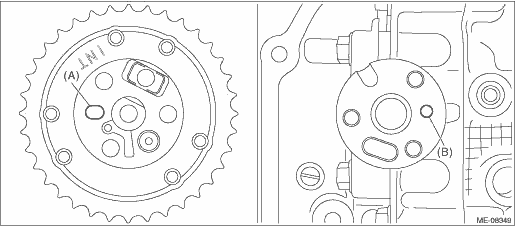

3. Install the timing chain RH. Timing Chain Assembly > INSTALLATION 4. Install the chain cover. Chain Cover > INSTALLATION • Exhaust cam sprocket RH 1. Install the exhaust cam sprocket RH by aligning the knock hole (A) of exhaust cam sprocket RH and the knock pin (B) of exhaust camshaft RH. NOTE: Before installation, check that there is no foreign matter on the exhaust cam sprocket RH and exhaust camshaft RH.

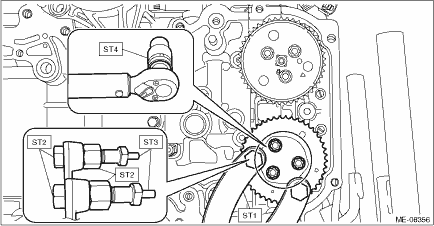

2. Hold the exhaust cam sprocket RH using the ST1, ST2 and ST3, and install the bolts using the ST4.
Tightening torque: 18 N·m (1.8 kgf-m, 13.3 ft-lb)

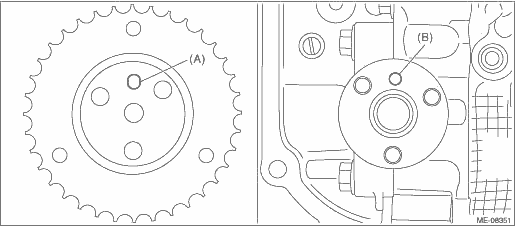

3. Install the timing chain RH. Timing Chain Assembly > INSTALLATION 4. Install the chain cover. Chain Cover > INSTALLATION 2. CAM SPROCKET LH • Intake cam sprocket LH 1. Install the intake cam sprocket LH by aligning the knock hole (A) of intake cam sprocket LH and the knock pin (B) of intake camshaft LH. NOTE: Before installation, check that there is no foreign matter on the intake cam sprocket LH and intake camshaft LH.

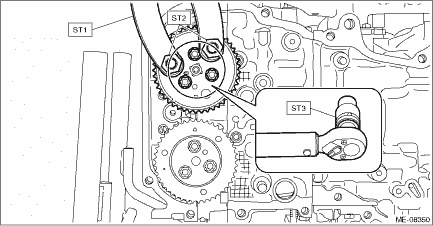

2. Hold the intake cam sprocket LH using the ST1 and ST2, and install the bolts using the ST3. CAUTION: Perform the operation carefully since the ST comes off easily.
Tightening torque: 18 N·m (1.8 kgf-m, 13.3 ft-lb)

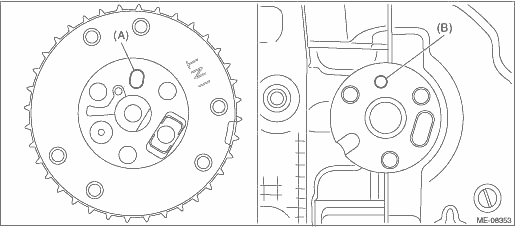

3. Install timing chain LH. Timing Chain Assembly > INSTALLATION 4. Install the chain cover. Chain Cover > INSTALLATION • Exhaust cam sprocket LH 1. Install the exhaust cam sprocket LH by aligning the knock hole (A) of exhaust cam sprocket LH and the knock pin (B) of exhaust camshaft LH. NOTE: Before installation, check that there is no foreign matter on the exhaust cam sprocket LH and exhaust camshaft LH.

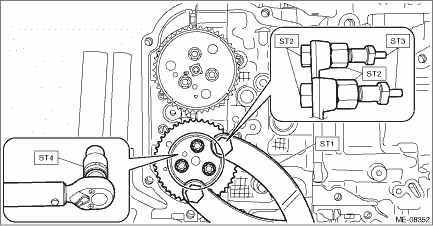

2. Hold the exhaust cam sprocket LH using the ST1, ST2 and ST3, and install the bolts using the ST4.
Tightening torque: 18 N·m (1.8 kgf-m, 13.3 ft-lb)
3. Install timing chain LH. Timing Chain Assembly > INSTALLATION 4. Install the chain cover. Chain Cover > INSTALLATION |
Inspection
Check the cam sprocket teeth for abnormal wear and scratches. ...
