1. Clean the crankshaft thread using compressed air.

2. Install the crank pulley.

3. Apply engine oil to the crank pulley bolt seat and thread.

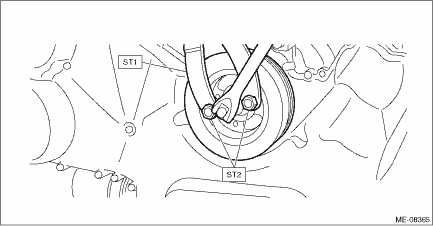

4. Use the ST to lock the crank pulley, and tighten the crank pulley bolt.

NOTE:

After tightening, if engine oil is spilt onto the crank pulley bolt or the crank pulley, wipe it off with a cloth.

ST1 18355AA000

PULLEY WRENCH

ST2 18334AA000

PULLEY WRENCH PIN SET

Tightening torque:

195 N·m (19.9 kgf-m, 143.8 ft-lb)

5. Install the V-belts. V-belt > INSTALLATION
