Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

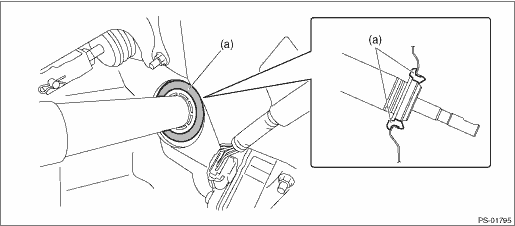

CAUTION: • When removing, installing or replacing the VDCCM&H/U, VDCCM&H/U bracket, steering wheel or steering angle sensor (steering roll connector), perform “VSC(VDC) Centering Mode” of the VDC. VDC Control Module and Hydraulic Control Unit (VDCCM&H/U) > ADJUSTMENT • Before handling the airbag system components, always refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION 1. Install the bushing (a) to the toe board from the passenger compartment side.
2. Insert the end of the column assembly - steering into the toe board bushing. 3. Tighten the column assembly - steering installation bolt located under the beam COMPL - steering with the tilt lever fixed. Tightening torque: 20 N·m (2.0 kgf-m, 14.8 ft-lb) 4. Install the ignition key lock. Ignition Key Lock > REPLACEMENT 5. Install the switch assembly - combination. 6. Connect all the connectors under the instrument panel. 7. Install the universal joint assembly - steering. Universal Joint > INSTALLATION CAUTION: • Always install the universal joint assembly - steering after installing the steering column to avoid damage to the universal joint assembly - steering. • Be sure to follow the tightening order and tightening torque of the universal joint assembly - steering to avoid the steering effort from becoming heavy. After confirming that the steering column position is in the neutral position, tighten the universal joint assembly - steering. • Always place the tilt lever to the lock position after the steering column is adjusted. 8. Install the panel - knee guard. Tightening torque: 7 N·m (0.7 kgf-m, 5.2 ft-lb) 9. Install the cover assembly - instrument panel LWR driver. 10. Install the cover assembly - column. 11. Align the center position of the steering roll connector. Roll Connector > ADJUSTMENT 12. Install the steering wheel. Tightening torque: Steering wheel: 39 N·m (4.0 kgf-m, 28.8 ft-lb) Clearance: Between cover assembly - column and steering wheel: 4 — 6 mm (0.16 — 0.24 in) 13. Install the driver’s airbag module. Driver’s Airbag Module > INSTALLATION 14. Connect the ground terminal to battery sensor. NOTE |
