Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

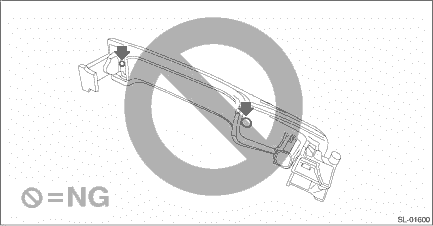

1. FRONT ANTENNA CAUTION: Do not detach the antenna from the front door outer handle. If replacement is required, replace the front outer handle assembly as a whole.
1. Install the handle - door outer. Front Outer Handle > INSTALLATION 2. Connect the ground terminal to battery sensor. NOTE 2. REAR ANTENNA (SEDAN MODEL) 1. Install the rear antenna assembly - exterior. 2. Install the trim panel - trunk lid. Trunk Room Trim > INSTALLATION 3. Connect the ground terminal to battery sensor. NOTE 3. REAR ANTENNA (OUTBACK MODEL) 1. Install the rear antenna assembly - exterior. 2. Install the trim panel - rear gate. Rear Gate Trim > REMOVAL 3. Connect the ground terminal to battery sensor. NOTE |
Inspection
1. Check the setting by performing Keyless access system check using the Subaru Select Monitor. Keyless Access System Check > OPERATION2. Disconnect the Subaru Select Monitor. While bringing the acce ...
