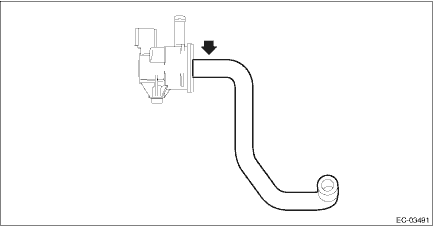

1. Install the vacuum hose to the purge control solenoid valve.

2. Connect the vacuum hose (A) and connector (B) to the purge control solenoid valve.

3. Install the bolt securing the purge control solenoid valve to the intake manifold assembly.

NOTE:

Hold the purge control solenoid valve unit by hand to prevent it from rotating together.

Tightening torque:

3.4 N·m (0.3 kgf-m, 2.5 ft-lb)

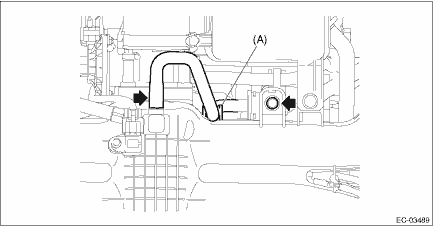

4. Secure the vacuum hose to the clip (A), and connect the vacuum hose to the intake manifold assembly.

5. Connect the ground terminal to battery sensor. NOTE

Inspection

1. PURGE CONTROL SOLENOID VALVE1. Check that the purge control solenoid valve has no deformation, cracks or other damages.2. Measure the resistance between the purge control solenoid valve terminals.T ...
