Subaru Legacy BN/BS (2015-2019) Service Manual: Installation

Subaru Legacy BN/BS (2015-2019) Service Manual / Wiper and washer systems / Front wiper motor and link / Installation

CAUTION:

Before installing the windshield glass and cowl panel, make sure there are no gravel in the installing area.

1. Connect the ground terminal to battery sensor. NOTE

2. Check that the motor assembly - windshield wiper is at the auto stop position.

CAUTION:

During motor operation, do not touch the movable part.

(1) Connect the harness of front wiper to the motor assembly - windshield wiper.

(2) Switch the wiper switch to ON/OFF once.

3. Disconnect the ground terminal from battery sensor again. NOTE

4. Install the motor assembly - windshield wiper.

Tightening torque:

5.5 N·m (0.6 kgf-m, 4.1 ft-lb)

5. Install the link assembly - windshield wiper.

CAUTION:

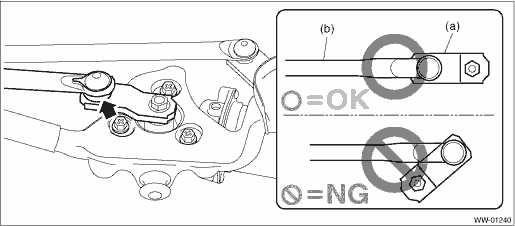

Set the component where the rod (b) and link plate (a) are aligned in a straight line.

6. Install the cowl panel - side and the cowl panel assembly. Cowl Panel > INSTALLATION

7. Remove the arm assembly - windshield wiper. Front Wiper Arm > REMOVAL

8. Connect the ground terminal to battery sensor. NOTE

9. Check the position of windshield wiper. Front Wiper Arm > ADJUSTMENT

Inspection

1. Check that the following operations perform normally.CAUTION:Fix the motor to prevent the motor from being shorted by moving during operation.(1) When the battery is connected to the terminal of co ...
